747040 DODGE - SNX 530

Brand - DODGE
Item Number - 747040 DODGE - SNX 530
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 530
SK LD Seal Item Number - 496461 DODGE - SK 530 LD 135
SK FS Seal Item Number - 496479 DODGE - SK 530 FS 135
SK VR Seal Item Number - 496497 DODGE - SK 530 VR 135
Labyrinth Seal Item Number - 747343 DODGE - TS 530
Triple-Tect Seal Item Number - 747399 DODGE - TT 530
End Cover Item Number - 740383 DODGE - DK 165
Spherical Roller Bearing Item Number - 422019 DODGE - 22230EK1.C3
Fixing Ring Item Number - 747149 DODGE - SR 270x16.5
Fixing Ring Quantity - 2
Adapter Item Number - 046231 DODGE - H 3130
Spherical Roller Bearing Item Number - 703989 DODGE - 23230K.C3
Fixing Ring Item Number - 747194 DODGE - SR 270x5
Fixing Ring Quantity - 2
Adapter Item Number - 053201 DODGE - H 2330
Sight Glass Item Number - 740453 DODGE - SG 530
Weight (kg) - 77.3

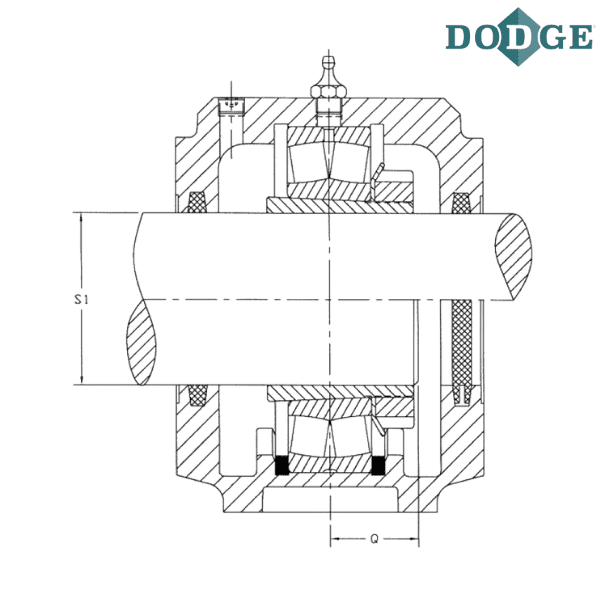

Shaft Size (S-1) mm - 135

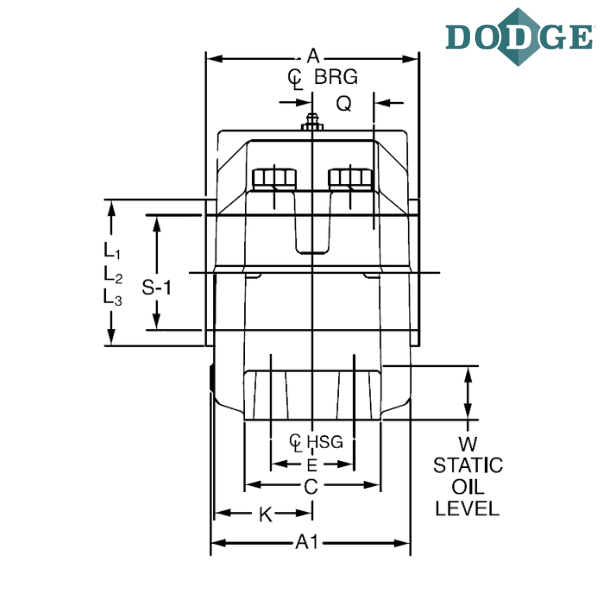

A1 (mm) - 226
Overall Length (B) mm - 530
C (mm) - 160

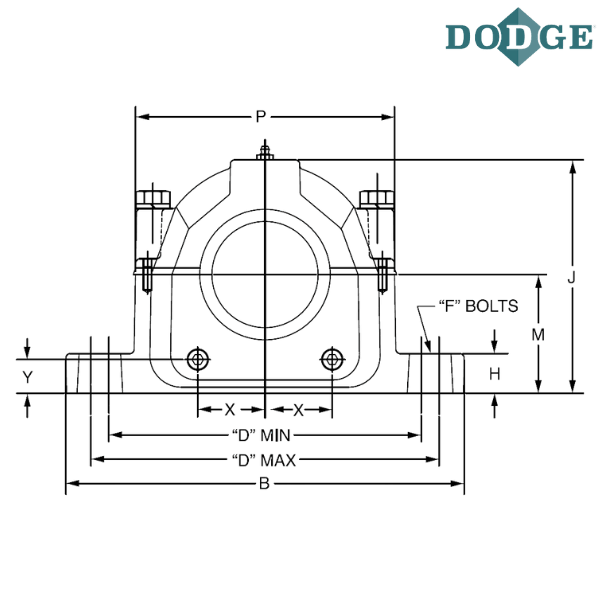

Bolt to Bolt Minimum Distance (D min) mm - 443
Bolt to Bolt Maximum Distance (D max) mm - 457
F-Bolt Diameter - M30
H (mm) - 60
Overall Height (J) mm - 317
K (mm) - 110
Base to Center Height (M) mm - 160
P (mm) - 364
Q (mm) - 63
Static Oil Level (W) mm - 53
X (mm) - 91
Y (mm) - 34
A (With LD Seal) mm - 220
A (With FS Seal) mm - 220
A (With VR Seal) mm - 233
A (With TS Seal) mm - 230
A (With TT Seal) mm - 239
A (With DK End Cover) mm - 220
L1 (VR Seal) mm - 149
L2 (TS Seal) mm - 180
L3 (TT) mm - 176

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
