747040 DODGE - SNX 230

Brand - DODGE
Item Number - 747040 DODGE - SNX 230
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 230
FS Seal Item Number - 713647 DODGE - 10X12X300
VR Seal Item Number - 738168 DODGE - VS0165
DK End Cover Item Number - 740383 DODGE - DK 165
Spherical Roller Bearing Item Number - 421274 DODGE - 22230E1.C3
Fixing Ring Item Number - 747149 DODGE - SR 270x16.5
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 703990 DODGE - 23230.C3
Fixing Ring Item Number - 747194 DODGE - SR 270x5
Fixing Ring Quantity - 2
Locknut Item Number - 046298 DODGE - KM 30
Lockwasher Item Number - 046317 DODGE - MB 30
Sight Glass Item Number - 740453 DODGE - SG 230
Weight (kg) - 77.3

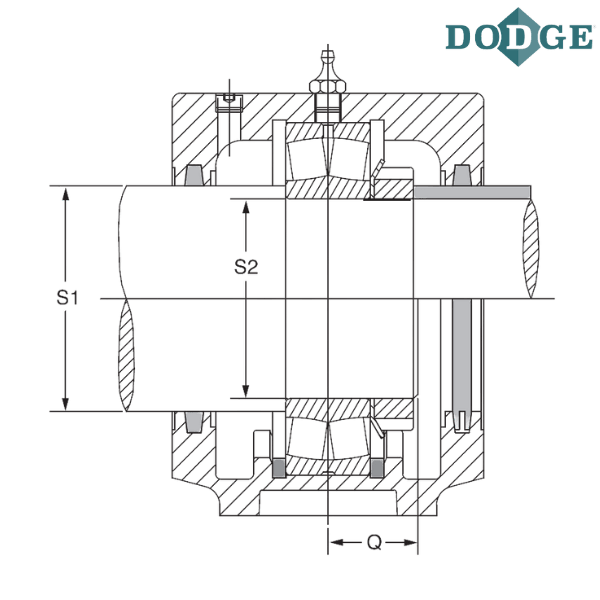

Shaft Size (S-1) mm - 165
Shaft Size (S-2) mm - 150
A1 (mm) - 226
Overall Length (B) mm - 530
C (mm) - 160

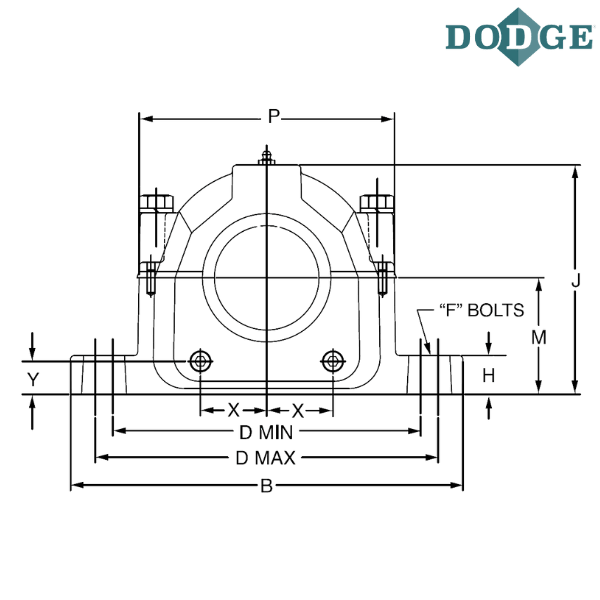

Bolt to Bolt Minimum Distance (D min) mm - 443
Bolt to Bolt Maximum Distance (D max) mm - 457
F-Bolt Diameter - M30
H (mm) - 60
Overall Height (J) mm - 317
K (mm) - 110
Base to Center Height (M) mm - 160
P (mm) - 364
Q (mm) - 36.5
Static Oil Level (W) mm - 53
X (mm) - 91
Y (mm) - 34

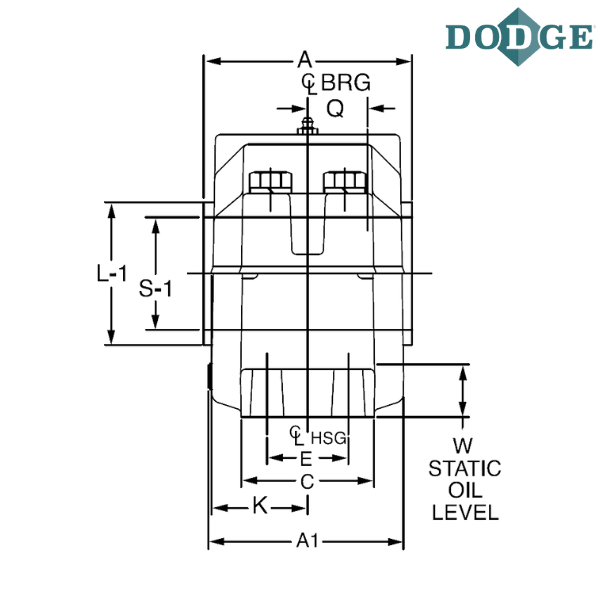

A (With LD Seal) mm - 220
A (With FS Seal) mm - 220
A (With DK End Cover) mm - 220
A (With TS Seal) mm - 230
A (With VR Seal) mm - 237
L-1 (mm) - 400

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
