747038 DODGE - SNX 526

Brand - DODGE
Item Number - 747038 DODGE - SNX 526
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 526
SK LD Seal Item Number - 496459 DODGE - SK 526 LD 115
SK FS Seal Item Number - 496477 DODGE - SK 526 FS 115
SK VR Seal Item Number - 496495 DODGE - SK 526 VR 115
Labyrinth Seal Item Number - 747341 DODGE - TS 526
Triple-Tect Seal Item Number - 747397 DODGE - TT 526
End Cover Item Number - 740381 DODGE - DK 145
Spherical Roller Bearing Item Number - 422015 DODGE - 22226EK1.C3
Fixing Ring Item Number - 747143 DODGE - SR 230x13
Fixing Ring Quantity - 2
Adapter Item Number - 046229 DODGE - H 3126
Spherical Roller Bearing Item Number - 703971 DODGE - 23226K.C3
Fixing Ring Item Number - 747192 DODGE - SR 230x5
Fixing Ring Quantity - 2
Adapter Item Number - 046723 DODGE - H 2326
Sight Glass Item Number - 740453 DODGE - SG 526
Weight (kg) - 55.2

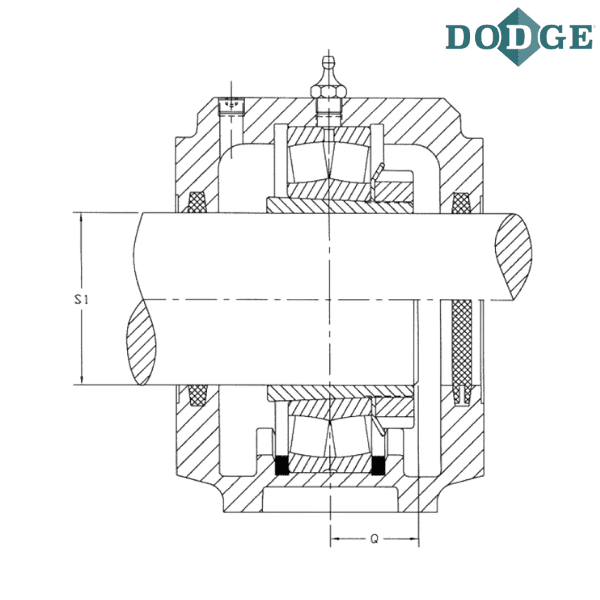

Shaft Size (S-1) mm - 115
A1 (mm) - 197
Overall Length (B) mm - 445
C (mm) - 130

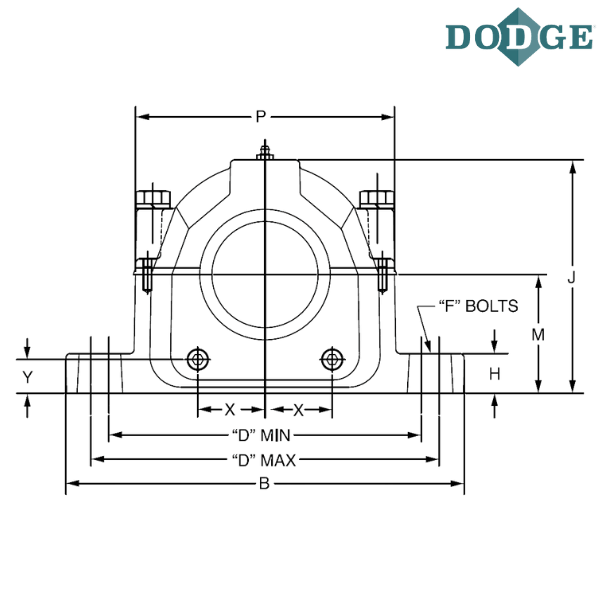

Bolt to Bolt Minimum Distance (D min) mm - 374
Bolt to Bolt Maximum Distance (D max) mm - 387
F-Bolt Diameter - M24
H (mm) - 50
Overall Height (J) mm - 290
K (mm) - 95
Base to Center Height (M) mm - 150
P (mm) - 315
Q (mm) - 55
Static Oil Level (W) mm - 49
X (mm) - 84
Y (mm) - 39

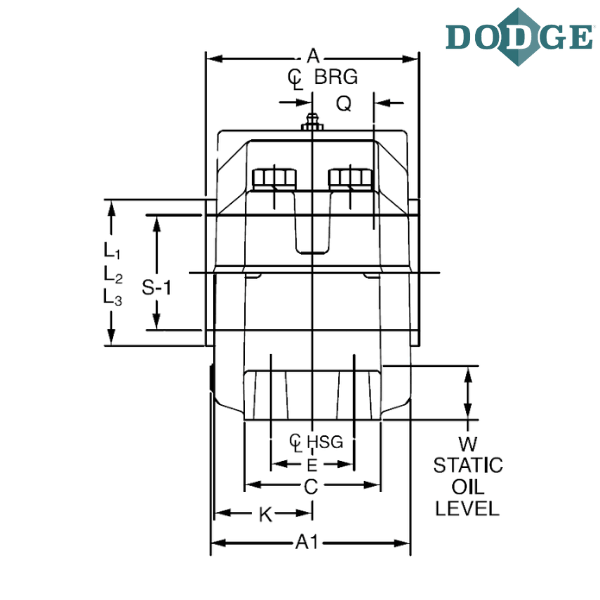

A (With LD Seal) mm - 191
A (With FS Seal) mm - 191
A (With VR Seal) mm - 204
A (With TS Seal) mm - 200
A (With TT Seal) mm - 211
A (With DK End Cover) mm - 191
L1 (VR Seal) mm - 129
L2 (TS Seal) mm - 158
L3 (TT) mm - 154

Notes :
SNX - Plummer Block to 140 mm
