747038 DODGE - SNX 226

Brand - DODGE
Item Number - 747038 DODGE - SNX 226
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 226
FS Seal Item Number - 713634 DODGE - 10X12X265
VR Seal Item Number - 738164 DODGE - VS0145
DK End Cover Item Number - 740381 DODGE - DK 145
Spherical Roller Bearing Item Number - 421272 DODGE - 22226E1.C3
Fixing Ring Item Number - 747143 DODGE - SR 230x13
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 703976 DODGE - 23226.C3
Fixing Ring Item Number - 747192 DODGE - SR 230x5
Fixing Ring Quantity - 2
Locknut Item Number - 046296 DODGE - KM 26
Lockwasher Item Number - 046315 DODGE - MB 26
Sight Glass Item Number - 740453 DODGE - SG 226
Weight (kg) - 55.2

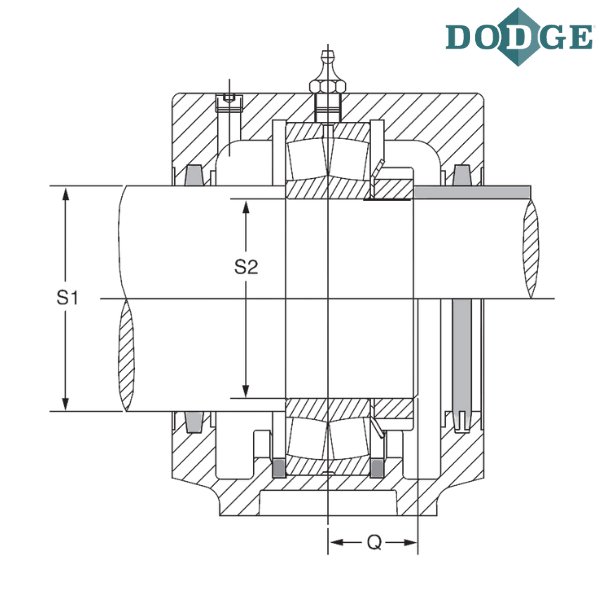

Shaft Size (S-1) mm - 145
Shaft Size (S-2) mm - 130

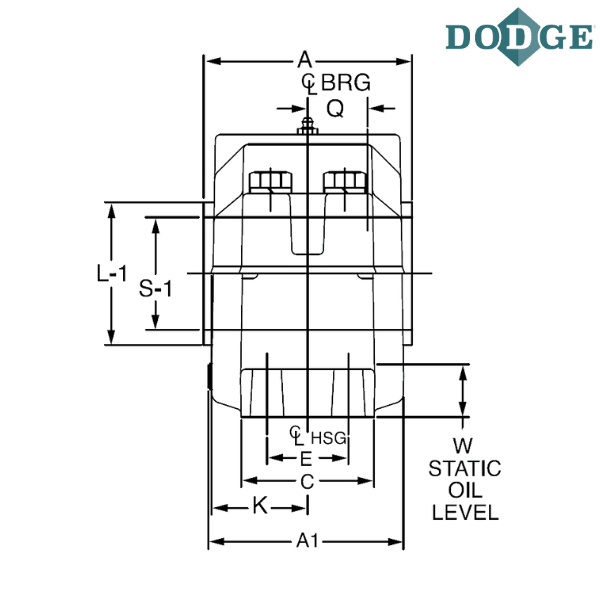

A1 (mm) - 197

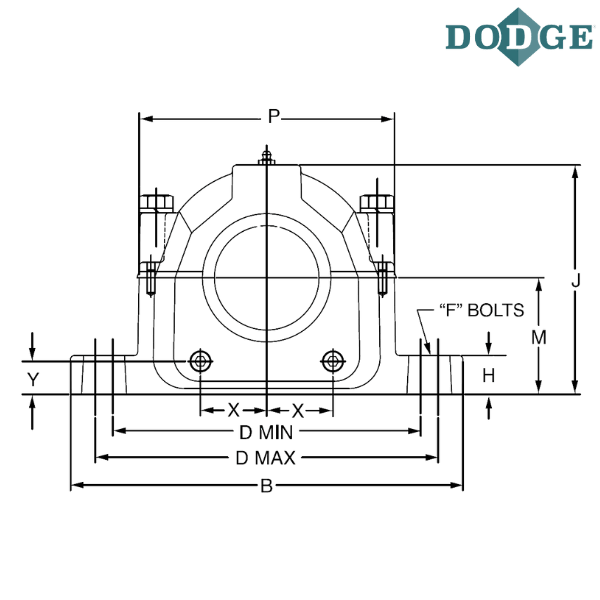

Overall Length (B) mm - 445
C (mm) - 130
Bolt to Bolt Minimum Distance (D min) mm - 374
Bolt to Bolt Maximum Distance (D max) mm - 387
F-Bolt Diameter - M24
H (mm) - 50
Overall Height (J) mm - 290
K (mm) - 95
Base to Center Height (M) mm - 150
P (mm) - 315
Q (mm) - 32
Static Oil Level (W) mm - 49
X (mm) - 84
Y (mm) - 39
A (With LD Seal) mm - 191
A (With FS Seal) mm - 191
A (With DK End Cover) mm - 191
A (With TS Seal) mm - 200
A (With VR Seal) mm - 204
L-1 (mm) - 140

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
