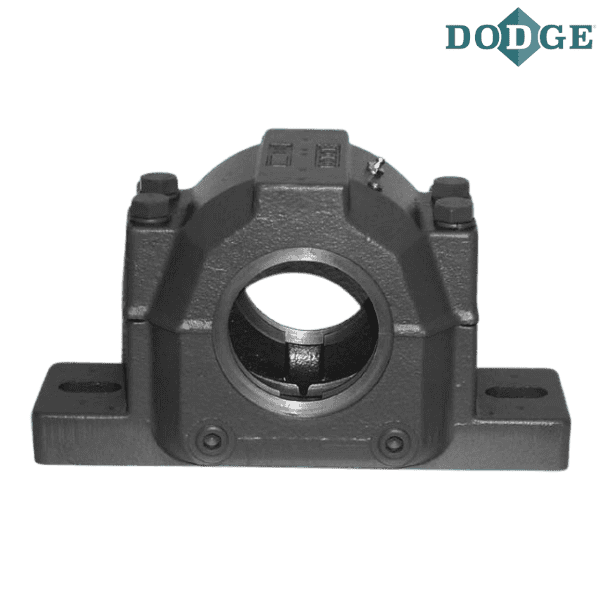

747037 DODGE - SNX 620

Brand - DODGE
Item Number - 747037 DODGE - SNX 620
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 620
SK LD Seal Item Number - 496422 DODGE - SK 620 LD 90
SK FS Seal Item Number - 496433 DODGE - SK 620 FS 90
SK VR Seal Item Number - 496444 DODGE - SK 620 VR 90
End Cover Item Number - 708983 DODGE - DK 135
Spherical Roller Bearing Item Number - 423110 DODGE - 22320E1K.C3
Fixing Ring Item Number - 747139 DODGE - SR 215X6.5
Fixing Ring Quantity - 2
Adapter Item Number - 046720 DODGE - H 2320
Sight Glass Item Number - 740453 DODGE - SG 620
Weight (kg) - 41.1

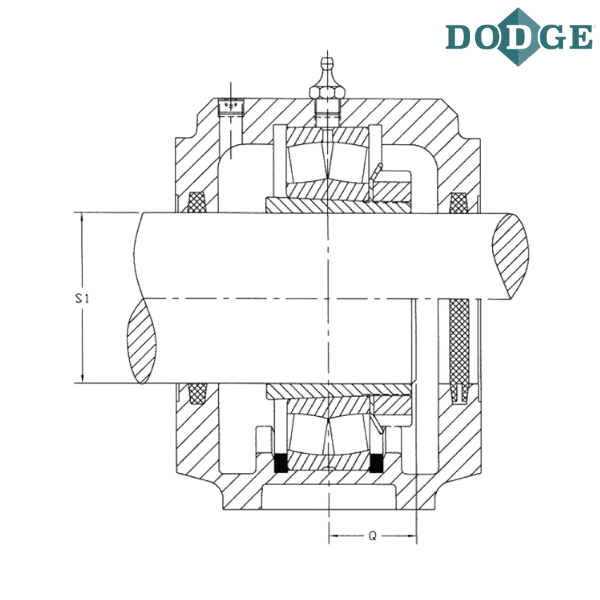

Shaft Size (S-1) mm - 90

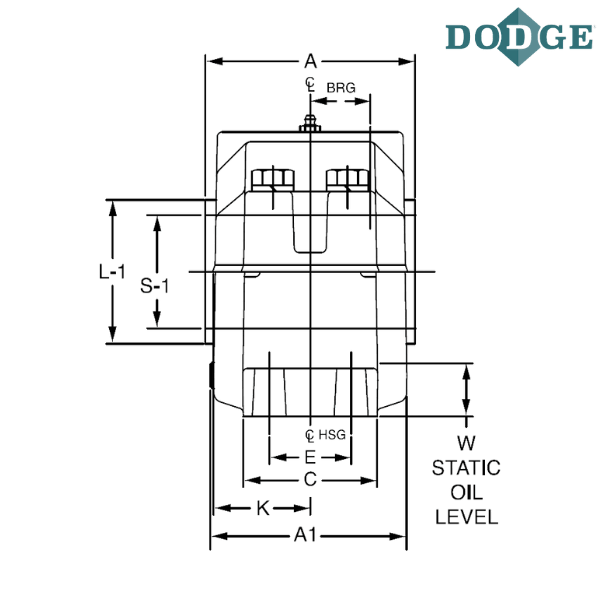

A1 (mm) - 191

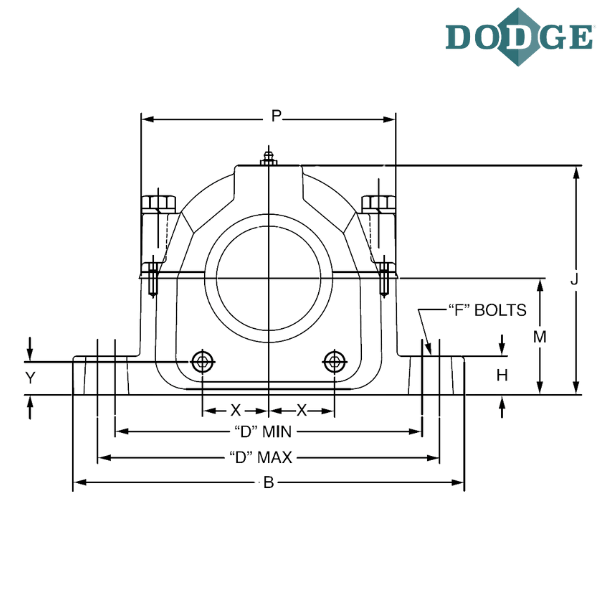

Overall Length (B) mm - 419
C (mm) - 120
Bolt to Bolt Minimum Distance (D min) mm - 337
Bolt to Bolt Maximum Distance (D max) mm - 368
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 267
K (mm) - 93
Base to Center Height (M) mm - 140
P (mm) - 286
Q (mm) - 57
Static Oil Level (W) mm - 58.1
X (mm) - 81
Y (mm) - 42
A (With LD Seal) mm - 185
A (FS Seal) mm - 185
A (With End Cover) mm - 185
A (With VR Seal) mm - 196
L1 (VR Seal) mm - 102

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
