747037 DODGE - SNX 524

Brand - DODGE
Item Number - 747037 DODGE - SNX 524
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 524
SK LD Seal Item Number - 496458 DODGE - SK 524 LD 110
SK FS Seal Item Number - 496476 DODGE - SK 524 FS 110
SK VR Seal Item Number - 496494 DODGE - SK 524 VR 110
Labyrinth Seal Item Number - 747340 DODGE - TS 524
Triple-Tect Seal Item Number - 747396 DODGE - TT 524
End Cover Item Number - 708983 DODGE - DK 135
Spherical Roller Bearing Item Number - 422013 DODGE - 22224EK1.C3
Fixing Ring Item Number - 747141 DODGE - SR 215x14
Fixing Ring Quantity - 2
Adapter Item Number - 046228 DODGE - H 3124
Spherical Roller Bearing Item Number - 703967 DODGE - 23224EASK.M.C3
Fixing Ring Item Number - 712225 DODGE - SR 215x5
Fixing Ring Quantity - 2
Adapter Item Number - 046722 DODGE - H 2324
Sight Glass Item Number - 740453 DODGE - SG 524
Weight (kg) - 41.1

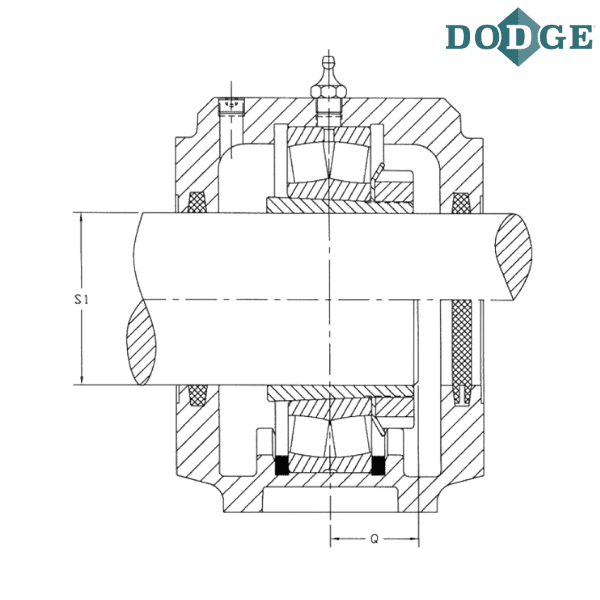

Shaft Size (S-1) mm - 110

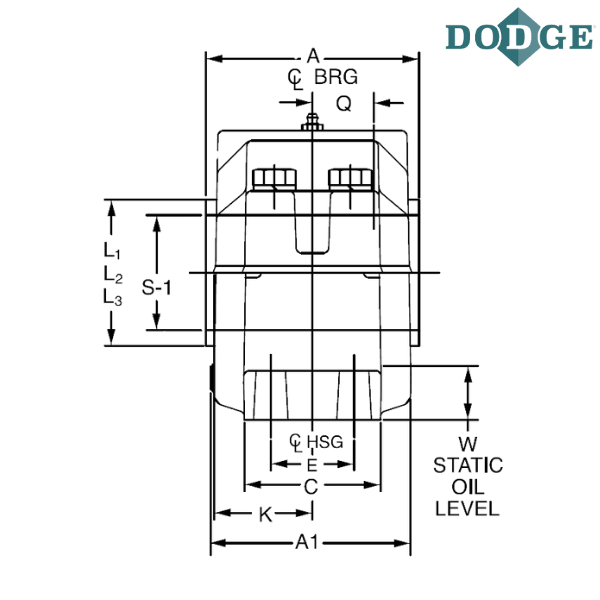

A1 (mm) - 191
Overall Length (B) mm - 419
C (mm) - 120

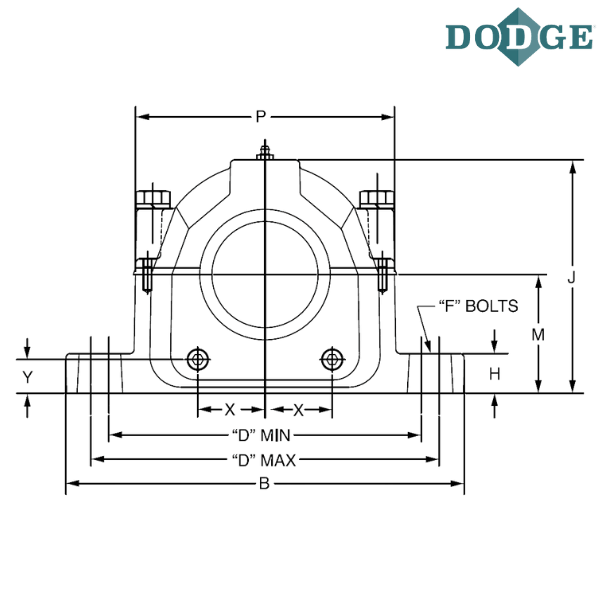

Bolt to Bolt Minimum Distance (D min) mm - 337
Bolt to Bolt Maximum Distance (D max) mm - 368
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 267
K (mm) - 93
Base to Center Height (M) mm - 140
P (mm) - 286
Q (mm) - 51
Static Oil Level (W) mm - 57
X (mm) - 81
Y (mm) - 42
A (With LD Seal) mm - 185
A (With FS Seal) mm - 185
A (With VR Seal) mm - 199
A (With TS Seal) mm - 195
A (With TT Seal) mm - 202
A (With DK End Cover) mm - 185
L1 (VR Seal) mm - 124
L2 (TS Seal) mm - 149
L3 (TT) mm - 154

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
