747036 DODGE - SNX 522

Brand - DODGE
Item Number - 747036 DODGE - SNX 522
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 522
SK LD Seal Item Number - 496457 DODGE - SK 522 LD 100
SK FS Seal Item Number - 496475 DODGE - SK 522 FS 100
SK VR Seal Item Number - 496493 DODGE - SK 522 VR 100
Labyrinth Seal Item Number - 747339 DODGE - TS 522
Triple-Tect Seal Item Number - 747395 DODGE - TT 522
End Cover Item Number - 708976 DODGE - DK 125
Spherical Roller Bearing Item Number - 422011 DODGE - 22222EK1.C3
Fixing Ring Item Number - 747137 DODGE - SR 200x13.5
Fixing Ring Quantity - 2
Adapter Item Number - 046227 DODGE - H 322
Spherical Roller Bearing Item Number - 703951 DODGE - 23222K.C3
Fixing Ring Item Number - 747191 DODGE - SR 200x5.1
Fixing Ring Quantity - 2
Adapter Item Number - 046721 DODGE - H 2322
Sight Glass Item Number - 740453 DODGE - SG 522
Self-aligning Ball Bearing Item Number - 051841 DODGE - 1222K.C3
Fixing Ring Item Number - 747188 DODGE - SR 200x21
Fixing Ring Quantity - 2
Adapter Item Number - 719385 DODGE - H 222
Self-aligning Ball Bearing Item Number - 421399 DODGE - 2222K.C3
Fixing Ring Item Number - 747137 DODGE - SR 200x13.5
Fixing Ring Quantity - 2
Adapter Item Number - 046227 DODGE - H 322
Weight (kg) - 35.8

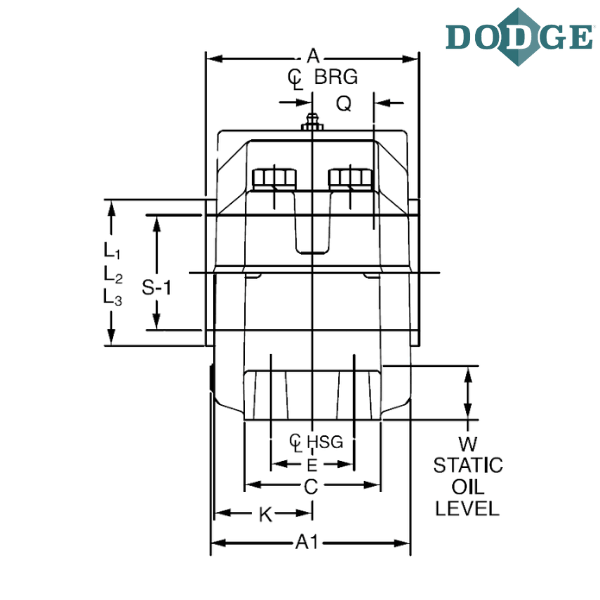

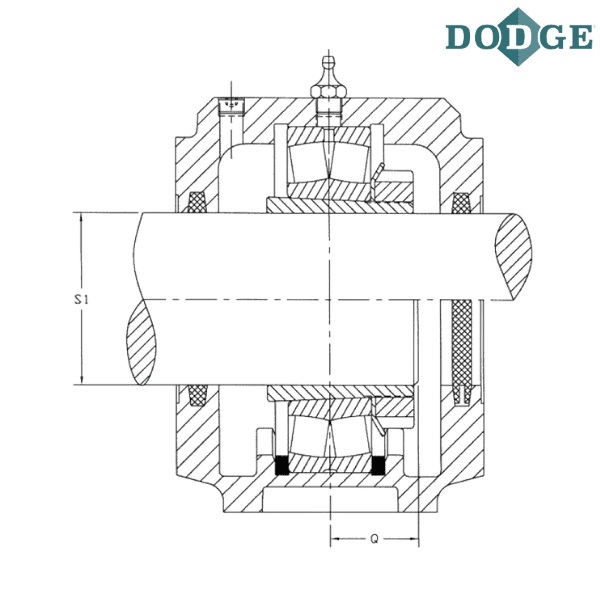

Shaft Size (S-1) mm - 100

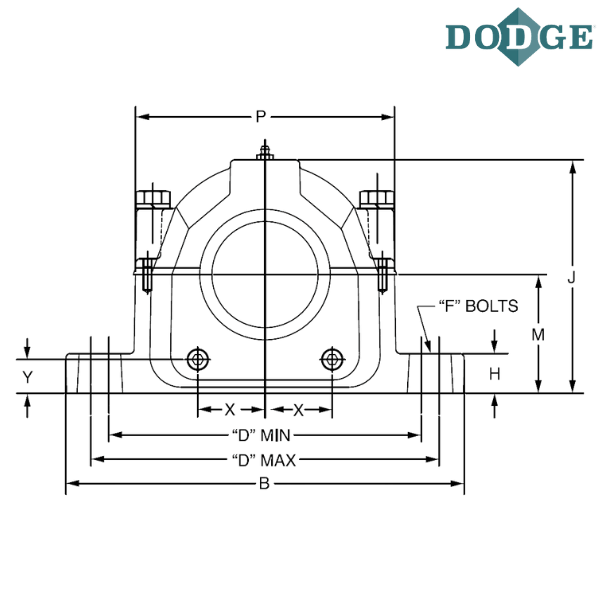

A1 (mm) - 174
Overall Length (B) mm - 419
C (mm) - 120
Bolt to Bolt Minimum Distance (D min) mm - 324
Bolt to Bolt Maximum Distance (D max) mm - 364
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 238
K (mm) - 84
Base to Center Height (M) mm - 125
P (mm) - 269
Q (mm) - 48
Static Oil Level (W) mm - 53.5
X (mm) - 73
Y (mm) - 34
A (With LD Seal) mm - 168
A (With FS Seal) mm - 168
A (With VR Seal) mm - 177
A (With TS Seal) mm - 175
A (With TT Seal) mm - 183
A (With DK End Cover) mm - 168
L1 (VR Seal) mm - 112
L2 (TS Seal) mm - 139
L3 (TT) mm - 144

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
