747036 DODGE - SNX 319

Brand - DODGE
Item Number - 747036 DODGE - SNX 319
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 319
SK FS Seal Item Number - 496410 DODGE - SK 319 FS 110
End Cover Item Number - 708976 DODGE - DK 125
Sight Glass Item Number - 740453 DODGE - SG 319
Spherical Roller Bearing Item Number - 423145 DODGE - 22319E1.C3
Fixing Ring Item Number - 747135 DODGE - SR 200X6.5
Fixing Ring Quantity - 2
Locknut Item Number - 046488 DODGE - KM 19
Lockwasher Item Number - 049490 DODGE - MB 19
Weight (kg) - 35.8

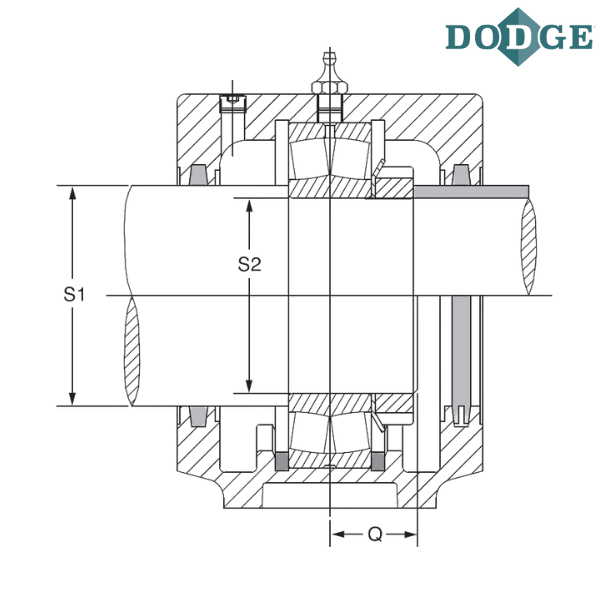

Shaft Size (S-1) mm - 110
Shaft Size (S-2) mm - 95

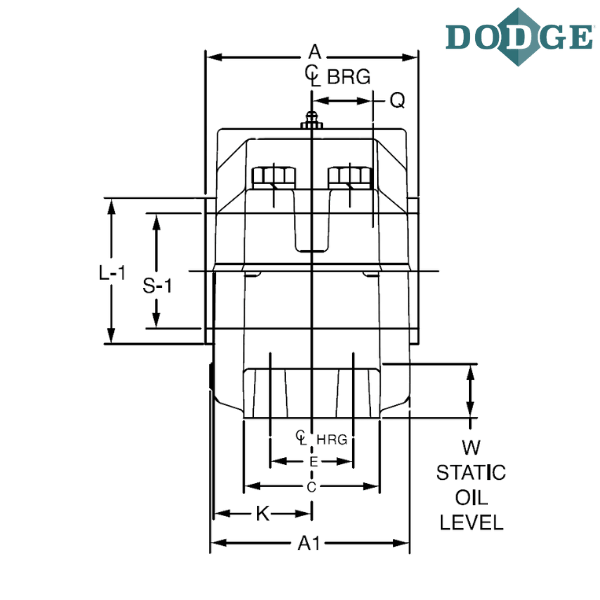

A1 (mm) - 173.9

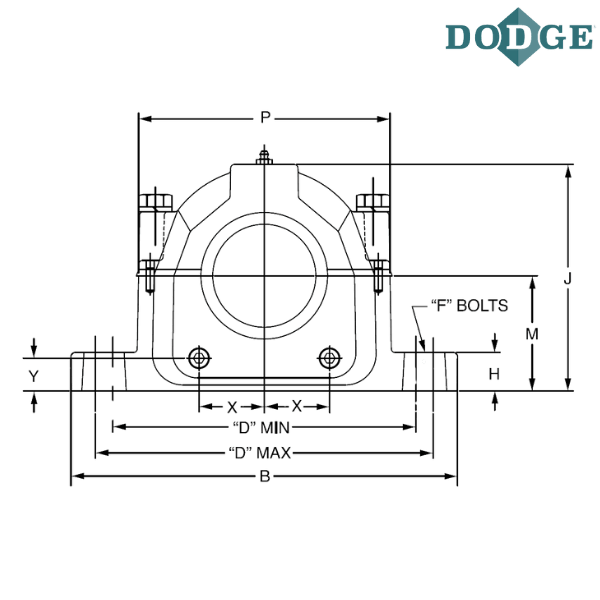

Overall Length (B) mm - 419.1
C (mm) - 120.7
Bolt to Bolt Minimum Distance (D min) mm - 323.9
Bolt to Bolt Maximum Distance (D max) mm - 364.3
F-Bolt Diameter - M24
H (mm) - 44.9
Overall Height (J) mm - 238.5
K (mm) - 83.7
Base to Center Height (M) mm - 124.9
P (mm) - 269.1
Q (mm) - 33.5
Static Oil Level (W) mm - 50.1
X (mm) - 73
Y (mm) - 33.8
A (With FS Seal) mm - 167.5
A (With DK End Cover) mm - 167.5
L1 (mm) - 131.3

Notes :
SNX - Plummer Block to 140 mm

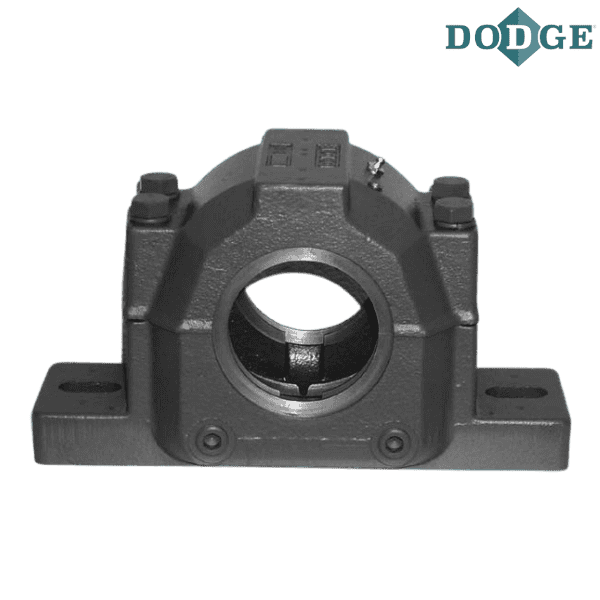

** Images are for representation purposes only
