747035 DODGE - SNX 220

Brand - DODGE
Item Number - 747035 DODGE - SNX 220
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 220
LD Seal Item Number - 725343 DODGE - LD 115
FS Seal Item Number - 713603 DODGE - 10X12X210
VR Seal Item Number - 738158 DODGE - VS0115
DK End Cover Item Number - 708970 DODGE - DK 115
Spherical Roller Bearing Item Number - 421269 DODGE - 22220E1.C3
Fixing Ring Item Number - 747132 DODGE - SR 180x12
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 703943 DODGE - 23220E.C3
Fixing Ring Item Number - 747190 DODGE - SR 180x4.85
Fixing Ring Quantity - 2
Locknut Item Number - 046293 DODGE - KM 20
Lockwasher Item Number - 046312 DODGE - MB 20
Sight Glass Item Number - 740453 DODGE - SG 220
Weight (kg) - 27.8

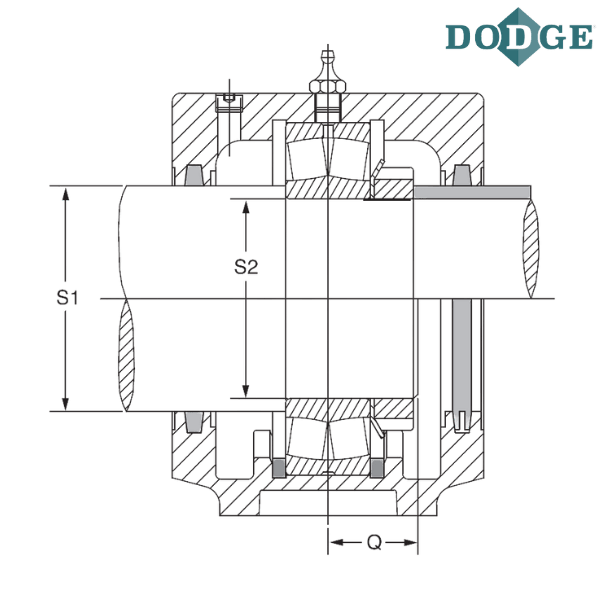

Shaft Size (S-1) mm - 115
Shaft Size (S-2) mm - 100

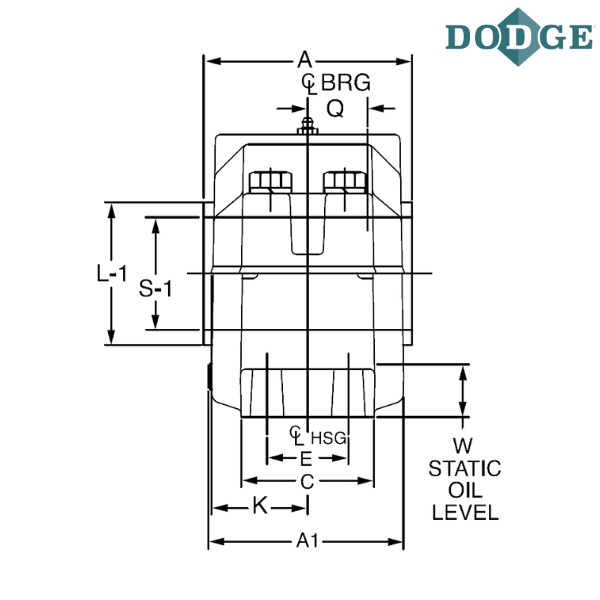

A1 (mm) - 164
Overall Length (B) mm - 390
C (mm) - 110

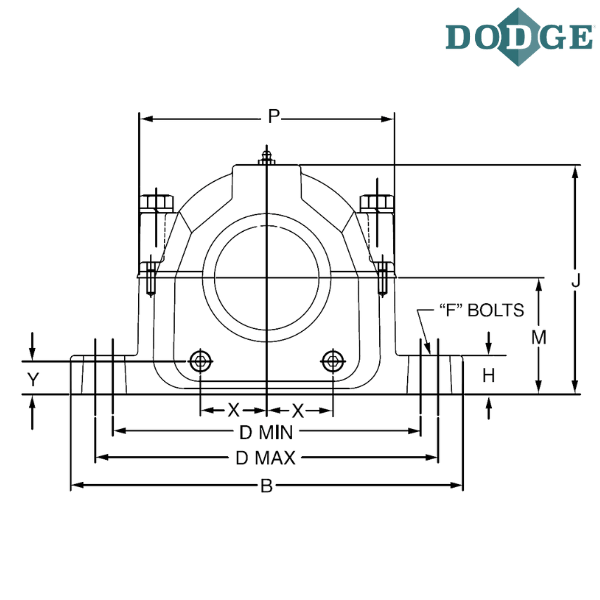

Bolt to Bolt Minimum Distance (D min) mm - 295
Bolt to Bolt Maximum Distance (D max) mm - 333
F-Bolt Diameter - M24
H (mm) - 40
Overall Height (J) mm - 220
K (mm) - 80
Base to Center Height (M) mm - 112
P (mm) - 248
Q (mm) - 23
Static Oil Level (W) mm - 45
X (mm) - 67
Y (mm) - 30
A (With LD Seal) mm - 160
A (With FS Seal) mm - 160
A (With DK End Cover) mm - 160
A (With TS Seal) mm - 169
A (With VR Seal) mm - 174
L-1 (mm) - 113

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
