747034 DODGE - SNX 219

Brand - DODGE
Item Number - 747034 DODGE - SNX 219
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 219
LD Seal Item Number - 725342 DODGE - LD 110
FS Seal Item Number - 713596 DODGE - 10X12X200
VR Seal Item Number - 738157 DODGE - VS0110
DK End Cover Item Number - 708966 DODGE - DK 110
Spherical Roller Bearing Item Number - 422996 DODGE - 22219E1.C3
Fixing Ring Item Number - 747130 DODGE - SR 170x12.5
Fixing Ring Quantity - 2
Locknut Item Number - 046488 DODGE - KM 19
Lockwasher Item Number - 046490 DODGE - MB 19
Sight Glass Item Number - 740453 DODGE - SG 219
Weight (kg) - 27

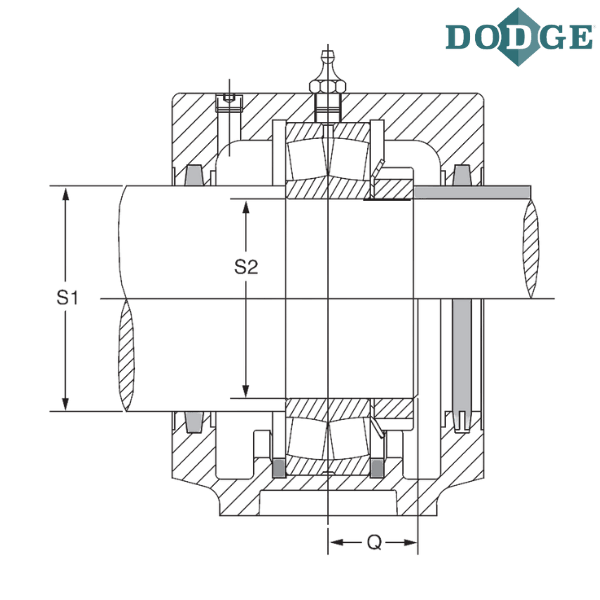

Shaft Size (S-1) mm - 110
Shaft Size (S-2) mm - 95

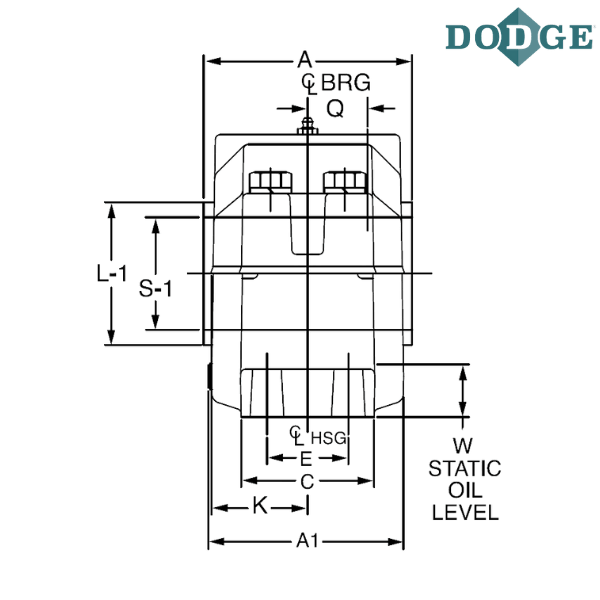

A1 (mm) - 156
Overall Length (B) mm - 360
C (mm) - 98

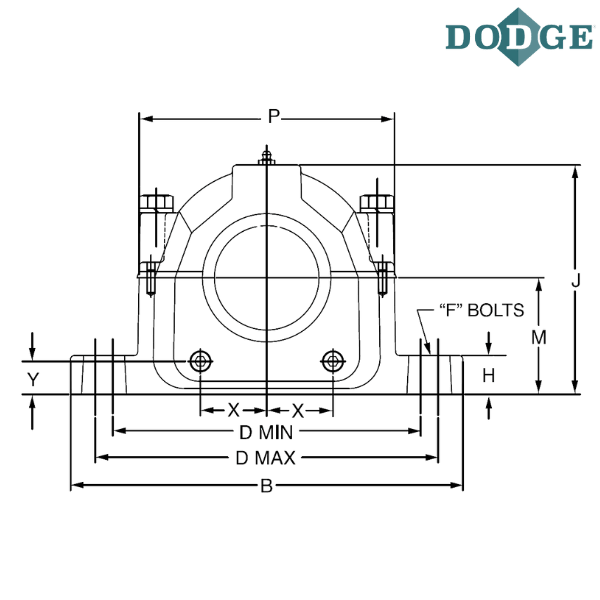

Bolt to Bolt Minimum Distance (D min) mm - 276
Bolt to Bolt Maximum Distance (D max) mm - 314
F-Bolt Diameter - M20
H (mm) - 35
Overall Height (J) mm - 214
K (mm) - 75
Base to Center Height (M) mm - 112
P (mm) - 229
Q (mm) - 21.5
Static Oil Level (W) mm - 39.5
X (mm) - 60
Y (mm) - 35
A (With LD Seal) mm - 150
A (With FS Seal) mm - 150
A (With DK End Cover) mm - 150
A (With TS Seal) mm - 161
A (With VR Seal) mm - 165
L-1 (mm) - 113

Notes :
SNX - Plummer Block to 140 mm
