747033 DODGE - SNX 518

Brand - DODGE
Item Number - 747033 DODGE - SNX 518
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 518
SK LD Seal Item Number - 496454 DODGE - SK 518 LD 80
SK FS Seal Item Number - 496472 DODGE - SK 518 FS 80
SK VR Seal Item Number - 496490 DODGE - SK 518 VR 80
Labyrinth Seal Item Number - 747336 DODGE - TS 518
Triple-Tect Seal Item Number - 747392 DODGE - TT 518
End Cover Item Number - 708959 DODGE - DK 100
Spherical Roller Bearing Item Number - 422007 DODGE - 22218EK1.C3
Fixing Ring Item Number - 747128 DODGE - SR 160x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046225 DODGE - H 318
Spherical Roller Bearing Item Number - 739329 DODGE - 23218K.C3
Fixing Ring Item Number - 747189 DODGE - SR 160x6.25
Fixing Ring Quantity - 2
Adapter Item Number - 719400 DODGE - H 2318
Sight Glass Item Number - 740453 DODGE - SG 518
Self-aligning Ball Bearing Item Number - 052570 DODGE - 1218K.C3
Fixing Ring Item Number - 747185 DODGE - SR 160x17.5
Fixing Ring Quantity - 2
Adapter Item Number - 719381 DODGE - H 218
Self-aligning Ball Bearing Item Number - 739154 DODGE - 2218K.C3
Fixing Ring Item Number - 747128 DODGE - SR 160x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046225 DODGE - H 318
Weight (kg) - 16.7
Shaft Size (S-1) mm - 80

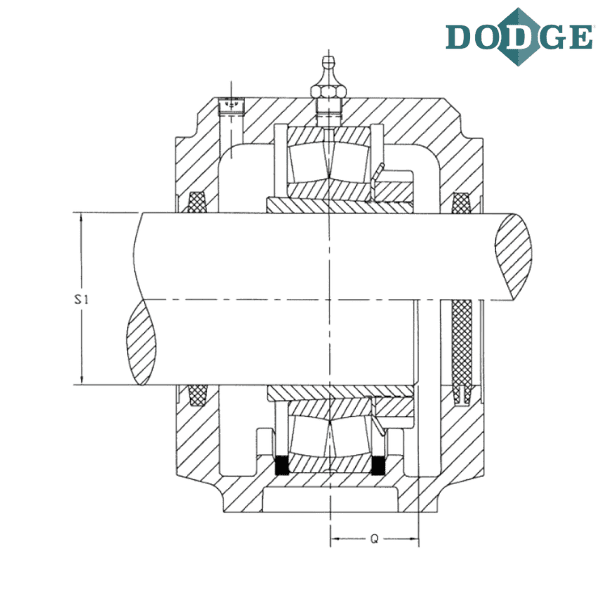

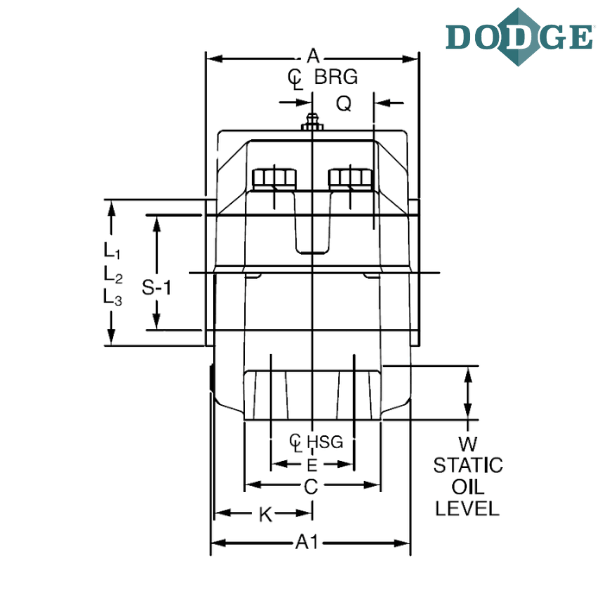

A1 (mm) - 151
Overall Length (B) mm - 346
C (mm) - 98

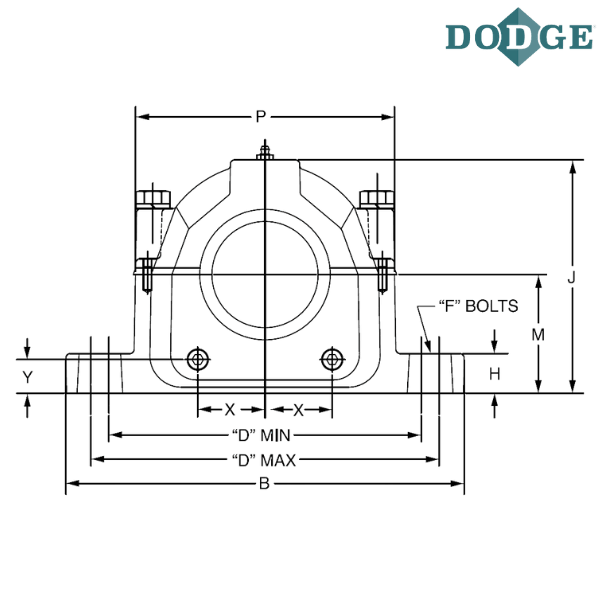

Bolt to Bolt Minimum Distance (D min) mm - 260
Bolt to Bolt Maximum Distance (D max) mm - 299
F-Bolt Diameter - M20
H (mm) - 35
Overall Height (J) mm - 195
K (mm) - 72
Base to Center Height (M) mm - 100
P (mm) - 220
Q (mm) - 38
Static Oil Level (W) mm - 47
X (mm) - 57
Y (mm) - 28
A (With LD Seal) mm - 144
A (With FS Seal) mm - 144
A (With VR Seal) mm - 157
A (With TS Seal) mm - 155
A (With TT Seal) mm - 163
A (With DK End Cover) mm - 144
L1 (VR Seal) mm - 92
L2 (TS Seal) mm - 105
L3 (TT) mm - 112

Notes :
SNX - Plummer Block to 140 mm
