747032 DODGE - SNX 217

Brand - DODGE
Item Number - 747032 DODGE - SNX 217
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 217
LD Seal Item Number - 725366 DODGE - LD 95
FS Seal Item Number - 713586 DODGE - 8.5X10X175
VR Seal Item Number - 738154 DODGE - VS0095
DK End Cover Item Number - 709166 DODGE - DK 90
Spherical Roller Bearing Item Number - 421267 DODGE - 22217E1.C3
Fixing Ring Item Number - 747125 DODGE - SR 150x12.5
Fixing Ring Quantity - 2
Locknut Item Number - 046291 DODGE - KM 17
Lockwasher Item Number - 046310 DODGE - MB 17
Sight Glass Item Number - 740453 DODGE - SG 217
Weight (kg) - 15.7

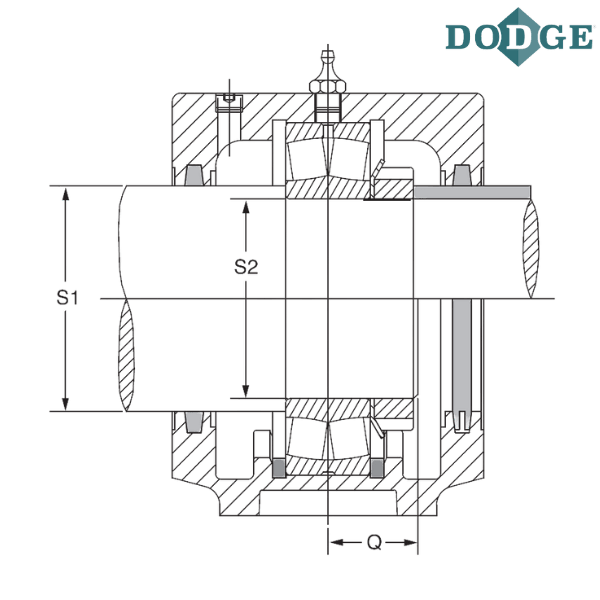

Shaft Size (S-1) mm - 95
Shaft Size (S-2) mm - 85

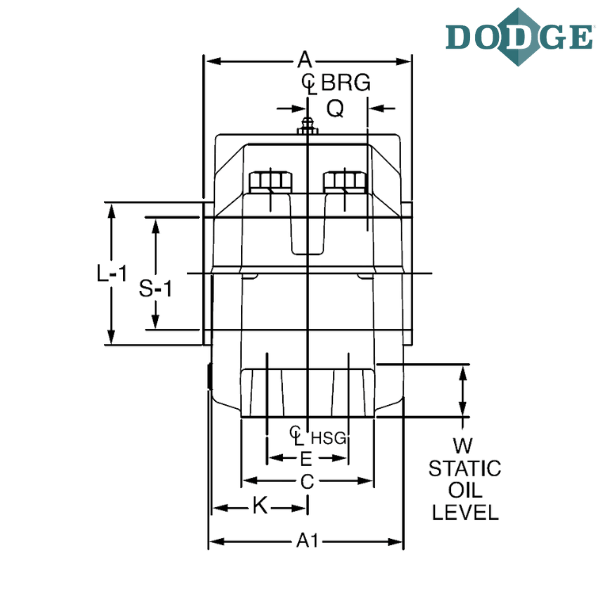

A1 (mm) - 132

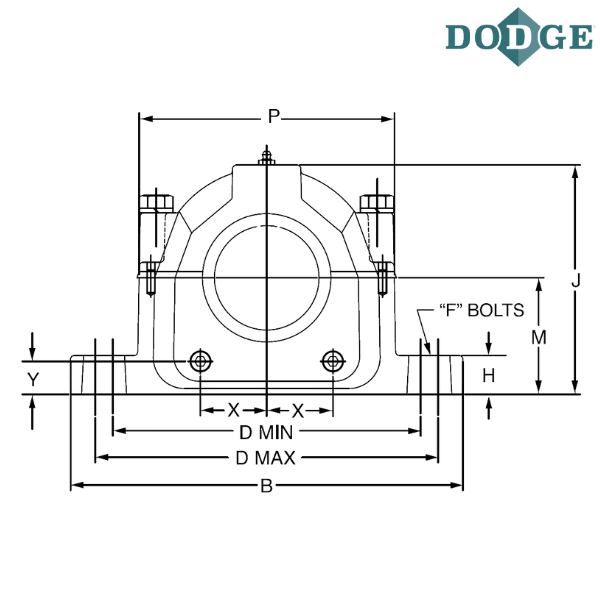

Overall Length (B) mm - 320
C (mm) - 90
Bolt to Bolt Minimum Distance (D min) mm - 251
Bolt to Bolt Maximum Distance (D max) mm - 279
F-Bolt Diameter - M20
H (mm) - 32
Overall Height (J) mm - 187
K (mm) - 63
Base to Center Height (M) mm - 95
P (mm) - 208
Q (mm) - 18
Static Oil Level (W) mm - 35.5
X (mm) - 53
Y (mm) - 28
A (With LD Seal) mm - 125
A (With FS Seal) mm - 125
A (With DK End Cover) mm - 125
A (With TS Seal) mm - 137
A (With VR Seal) mm - 139
L-1 (mm) - 97

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
