747031 DODGE - SNX 613

Brand - DODGE
Item Number - 747031 DODGE - SNX 613
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 613
SK LD Seal Item Number - 496417 DODGE - SK 613 LD 60
SK FS Seal Item Number - 496428 DODGE - SK 613 FS 60
SK VR Seal Item Number - 496439 DODGE - SK 613 VR 60
End Cover Item Number - 709166 DODGE - DK 90
Spherical Roller Bearing Item Number - 423104 DODGE - 22313E1K.C3
Fixing Ring Item Number - 747122 DODGE - SR 140X5
Fixing Ring Quantity - 2
Adapter Item Number - 046715 DODGE - H 2313
Sight Glass Item Number - 740452 DODGE - SG 613
Weight (kg) - 12.7

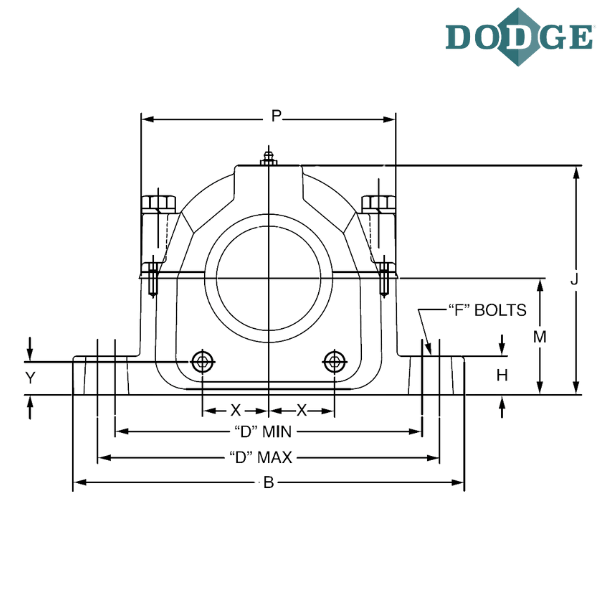

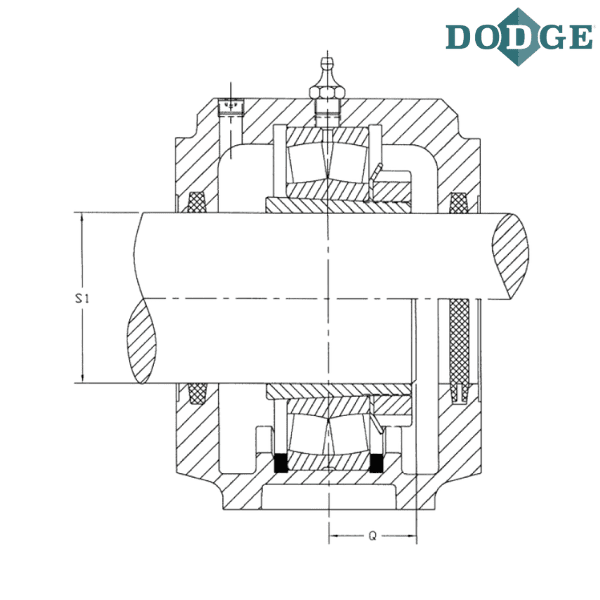

Shaft Size (S-1) mm - 60
A1 (mm) - 127
Overall Length (B) mm - 320
C (mm) - 90
Bolt to Bolt Minimum Distance (D min) mm - 245
Bolt to Bolt Maximum Distance (D max) mm - 279
F-Bolt Diameter - M20
H (mm) - 33
Overall Height (J) mm - 178
K (mm) - 62
Base to Center Height (M) mm - 95
P (mm) - 202
Q (mm) - 35

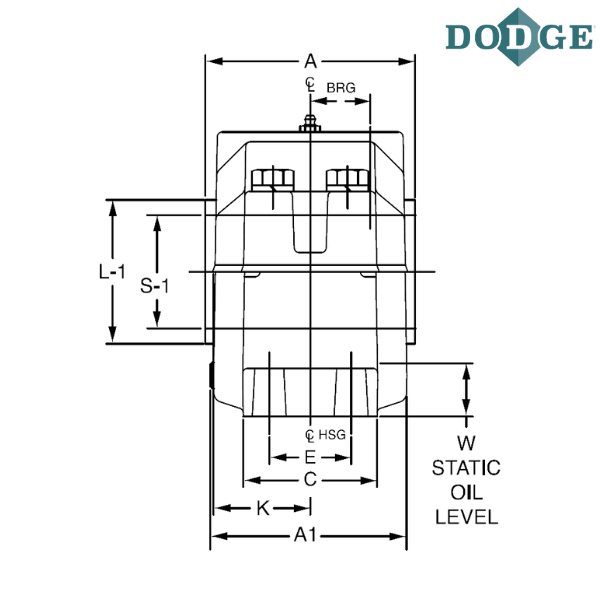

Static Oil Level (W) mm - 41.7
X (mm) - 49
Y (mm) - 31
A (With LD Seal) mm - 123
A (FS Seal) mm - 123
A (With End Cover) mm - 123
A (With VR Seal) mm - 132
L1 (VR Seal) mm - 70

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
