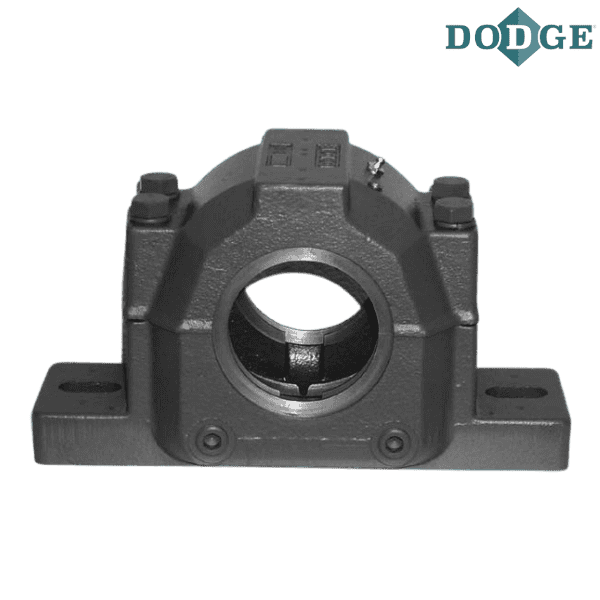

747031 DODGE - SNX 313

Brand - DODGE
Item Number - 747031 DODGE - SNX 313
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 313
SK FS Seal Item Number - 496405 DODGE - SK 313 FS 75
End Cover Item Number - 709166 DODGE - DK 90
Sight Glass Item Number - 740452 DODGE - SG 313
Spherical Roller Bearing Item Number - 423128 DODGE - 22313E1.C3
Fixing Ring Item Number - 747122 DODGE - SR 140X5
Fixing Ring Quantity - 2
Locknut Item Number - 046288 DODGE - KM13
Lockwasher Item Number - 046307 DODGE - MB13
Weight (kg) - 12.7

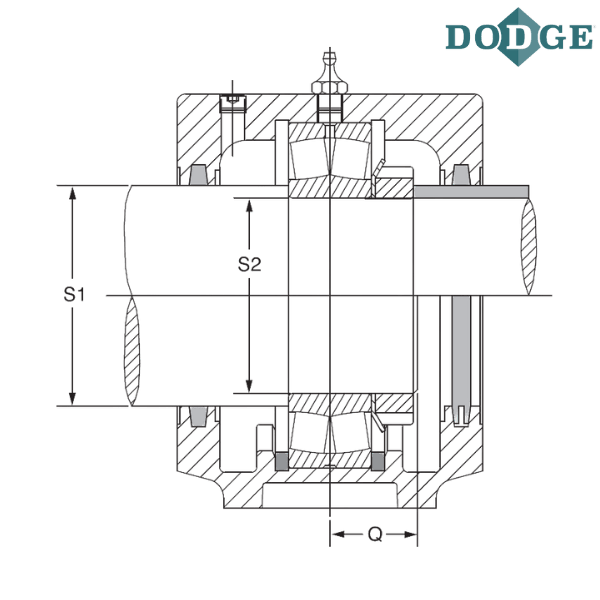

Shaft Size (S-1) mm - 75
Shaft Size (S-2) mm - 65

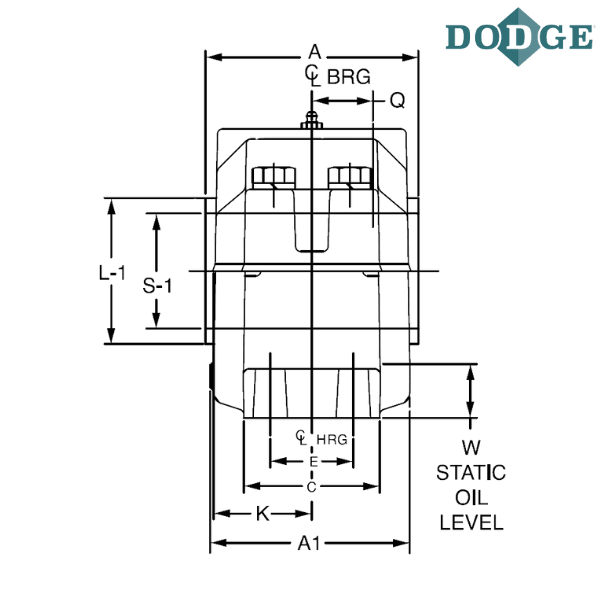

A1 (mm) - 126.8

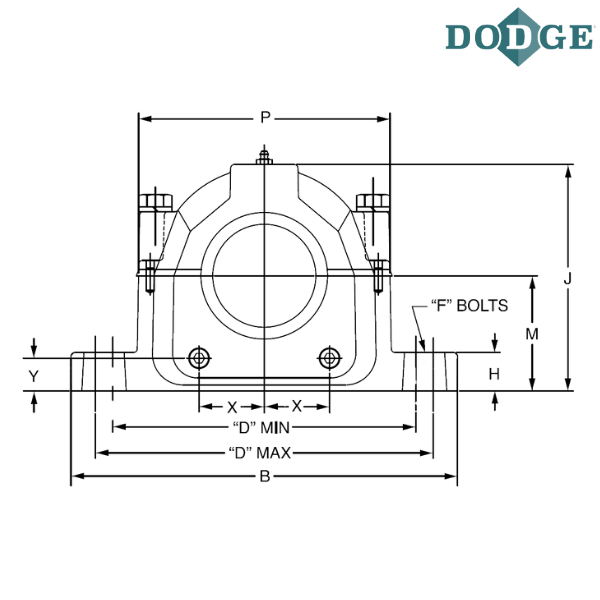

Overall Length (B) mm - 319.9
C (mm) - 90
Bolt to Bolt Minimum Distance (D min) mm - 244.5
Bolt to Bolt Maximum Distance (D max) mm - 279.4
F-Bolt Diameter - M20
H (mm) - 32.9
Overall Height (J) mm - 177.6
K (mm) - 61.5
Base to Center Height (M) mm - 94.9
P (mm) - 201.6
Q (mm) - 24
Static Oil Level (W) mm - 41.7
X (mm) - 49
Y (mm) - 30.5
A (With FS Seal) mm - 123
A (With DK End Cover) mm - 123
L1 (mm) - 93.2

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
