747031 DODGE - SNX 216

Brand - DODGE
Item Number - 747031 DODGE - SNX 216
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 216
LD Seal Item Number - 725364 DODGE - LD 90
FS Seal Item Number - 713579 DODGE - 8.5X10X165
VR Seal Item Number - 738152 DODGE - VS0090
DK End Cover Item Number - 709166 DODGE - DK 90
Spherical Roller Bearing Item Number - 421266 DODGE - 22216E1.C3
Fixing Ring Item Number - 747123 DODGE - SR 140x12.5
Fixing Ring Quantity - 2
Locknut Item Number - 046290 DODGE - KM 16
Lockwasher Item Number - 046309 DODGE - MB 16
Sight Glass Item Number - 740452 DODGE - SG 216
Weight (kg) - 12.7

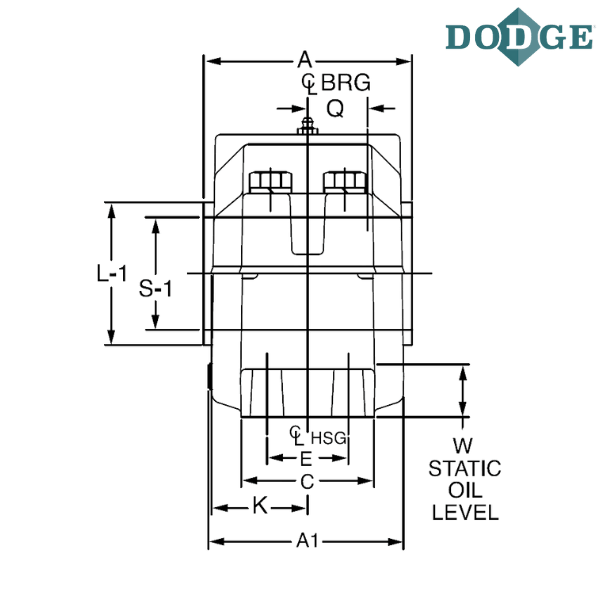

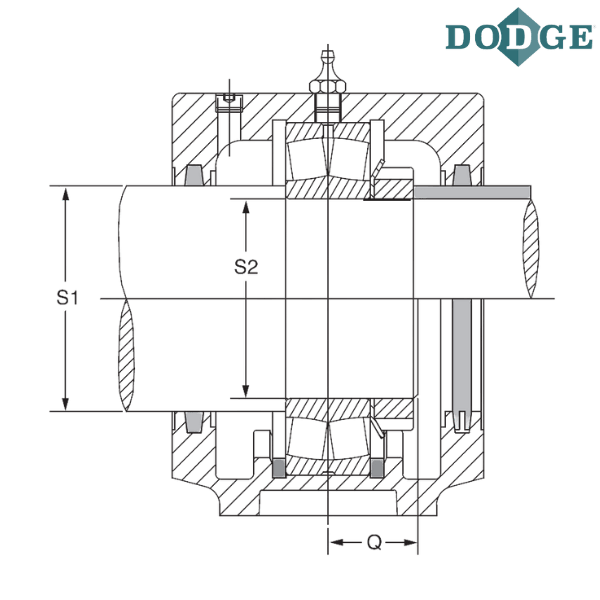

Shaft Size (S-1) mm - 90
Shaft Size (S-2) mm - 80
A1 (mm) - 127

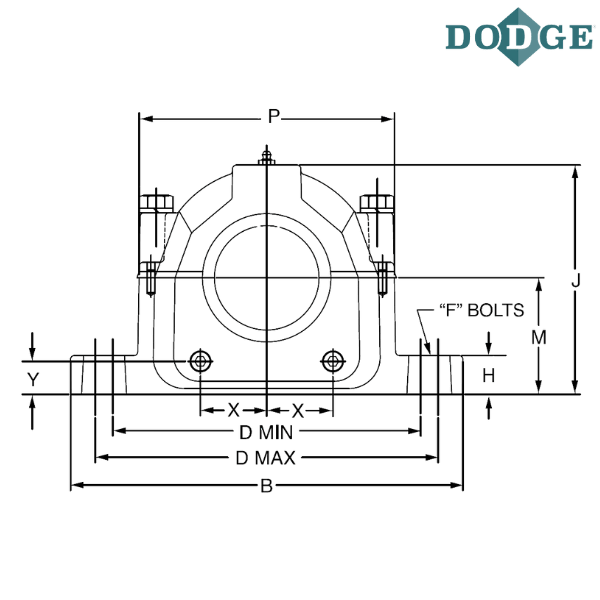

Overall Length (B) mm - 320
C (mm) - 90
Bolt to Bolt Minimum Distance (D min) mm - 245
Bolt to Bolt Maximum Distance (D max) mm - 279
F-Bolt Diameter - M20
H (mm) - 33
Overall Height (J) mm - 178
K (mm) - 62
Base to Center Height (M) mm - 95
P (mm) - 202
Q (mm) - 16.5
Static Oil Level (W) mm - 34.5
X (mm) - 49
Y (mm) - 31
A (With LD Seal) mm - 123
A (With FS Seal) mm - 123
A (With DK End Cover) mm - 123
A (With TS Seal) mm - 134
A (With VR Seal) mm - 136
L-1 (mm) - 93

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
