747030 DODGE - SNX 612

Brand - DODGE
Item Number - 747030 DODGE - SNX 612
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 612
SK LD Seal Item Number - 496416 DODGE - SK 612 LD 55
SK FS Seal Item Number - 496427 DODGE - SK 612 FS 55
SK VR Seal Item Number - 496438 DODGE - SK 612 VR 55
End Cover Item Number - 709162 DODGE - DK 85
Spherical Roller Bearing Item Number - 423376 DODGE - 22312E1K.C3
Fixing Ring Item Number - 747120 DODGE - SR 130X5
Fixing Ring Quantity - 2
Adapter Item Number - 046714 DODGE - H 2312
Sight Glass Item Number - 740452 DODGE - SG 612
Weight (kg) - 11.3

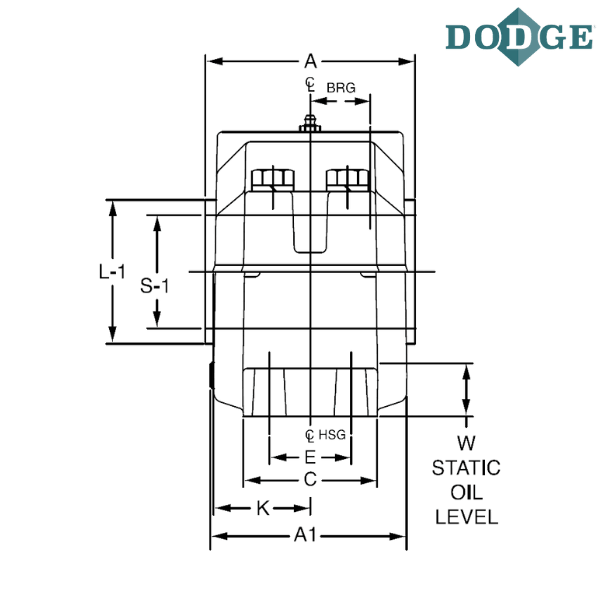

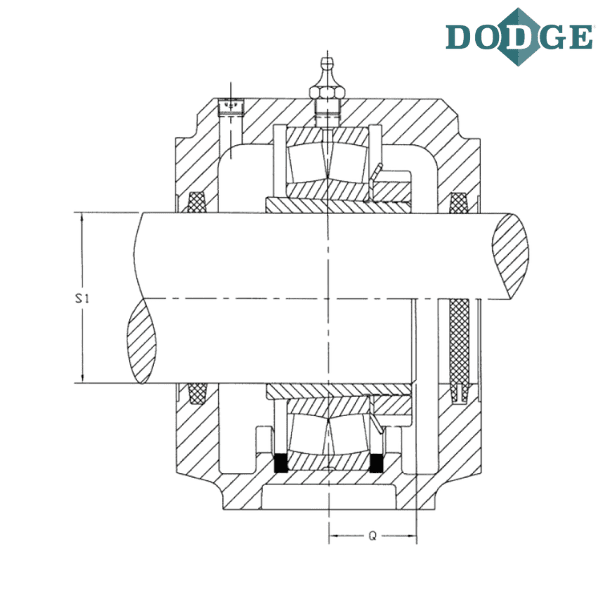

Shaft Size (S-1) mm - 55

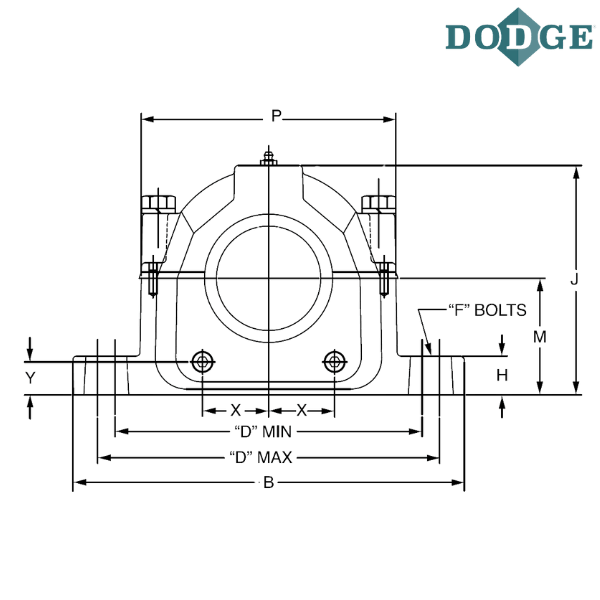

A1 (mm) - 121
Overall Length (B) mm - 283
C (mm) - 80
Bolt to Bolt Minimum Distance (D min) mm - 219
Bolt to Bolt Maximum Distance (D max) mm - 245
F-Bolt Diameter - M16
H (mm) - 29
Overall Height (J) mm - 161
K (mm) - 59
Base to Center Height (M) mm - 80
P (mm) - 179
Q (mm) - 36
Static Oil Level (W) mm - 30.7
X (mm) - 44
Y (mm) - 21
A (With LD Seal) mm - 117
A (FS Seal) mm - 117
A (With End Cover) mm - 117
A (With VR Seal) mm - 124
L1 (VR Seal) mm - 65

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
