747030 DODGE - SNX 515

Brand - DODGE
Item Number - 747030 DODGE - SNX 515
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 515
SK LD Seal Item Number - 496451 DODGE - SK 515 LD 65
SK FS Seal Item Number - 496469 DODGE - SK 515 FS 65
SK VR Seal Item Number - 496487 DODGE - SK 515 VR 65
Labyrinth Seal Item Number - 747333 DODGE - TS 515
Triple-Tect Seal Item Number - 747389 DODGE - TT 515
End Cover Item Number - 709162 DODGE - DK 85
Spherical Roller Bearing Item Number - 422001 DODGE - 22215EK1.C3
Fixing Ring Item Number - 747121 DODGE - SR 130x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046222 DODGE - H 315
Sight Glass Item Number - 740452 DODGE - SG 515
Self-aligning Ball Bearing Item Number - 052641 DODGE - 1215K.C3
Fixing Ring Item Number - 747182 DODGE - SR 130x15.5
Fixing Ring Quantity - 2
Adapter Item Number - 719378 DODGE - H 215
Self-aligning Ball Bearing Item Number - 739153 DODGE - 2215K.C3
Fixing Ring Item Number - 747121 DODGE - SR 130x12.5
Fixing Ring Quantity - 2
Adapter Item Number - 046222 DODGE - H 315
Weight (kg) - 11.3

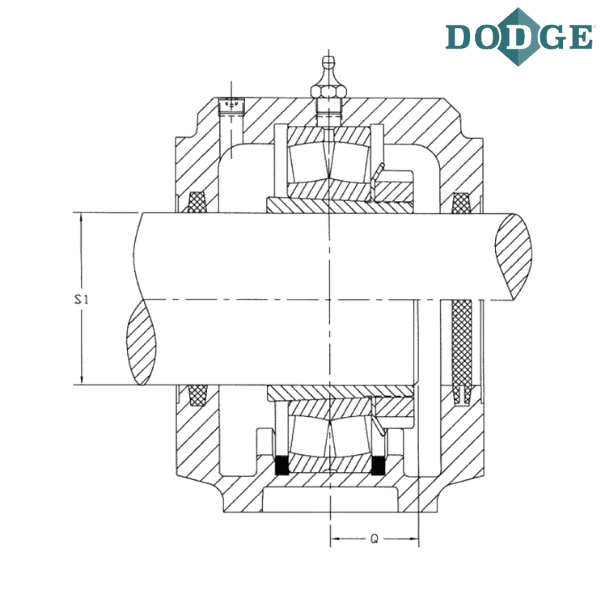

Shaft Size (S-1) mm - 65

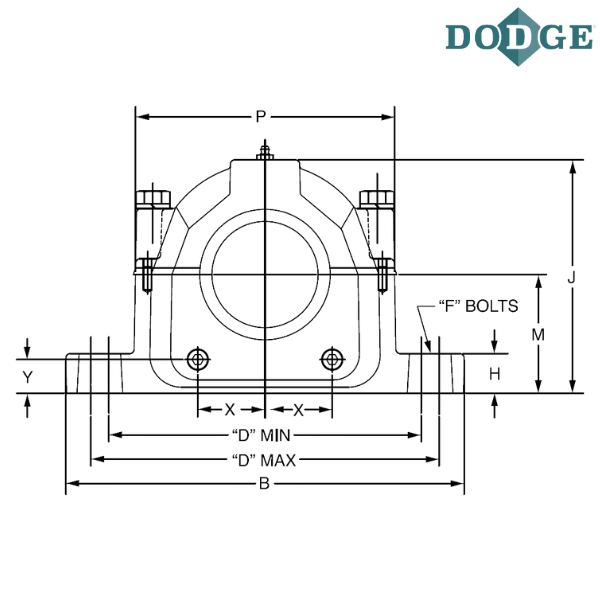

A1 (mm) - 121
Overall Length (B) mm - 283
C (mm) - 80
Bolt to Bolt Minimum Distance (D min) mm - 219
Bolt to Bolt Maximum Distance (D max) mm - 245
F-Bolt Diameter - M16
H (mm) - 29
Overall Height (J) mm - 161
K (mm) - 59
Base to Center Height (M) mm - 80
P (mm) - 179
Q (mm) - 31

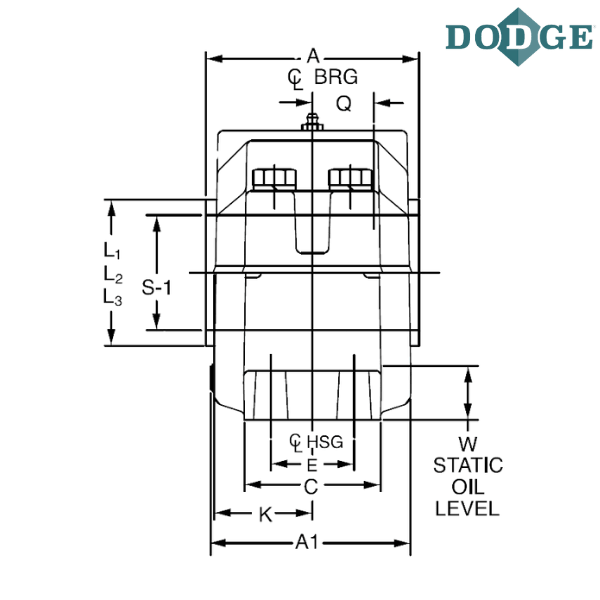

Static Oil Level (W) mm - 38
X (mm) - 44
Y (mm) - 21
A (With LD Seal) mm - 117
A (With FS Seal) mm - 117
A (With VR Seal) mm - 124
A (With TS Seal) mm - 126
A (With TT Seal) mm - 130
A (With DK End Cover) mm - 117
L1 (VR Seal) mm - 75
L2 (TS Seal) mm - 86
L3 (TT) mm - 97

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
