747029 DODGE - SNX 611

Brand - DODGE
Item Number - 747029 DODGE - SNX 611
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 611
SK LD Seal Item Number - 496415 DODGE - SK 611 LD 50
SK FS Seal Item Number - 496426 DODGE - SK 611 FS 50
SK VR Seal Item Number - 496437 DODGE - SK 611 VR 50
End Cover Item Number - 709152 DODGE - DK 75
Spherical Roller Bearing Item Number - 423102 DODGE - 22311E1K.C3
Fixing Ring Item Number - 747117 DODGE - SR 120X4
Fixing Ring Quantity - 2
Adapter Item Number - 046713 DODGE - H 2311
Sight Glass Item Number - 740452 DODGE - SG 611
Weight (kg) - 9.7

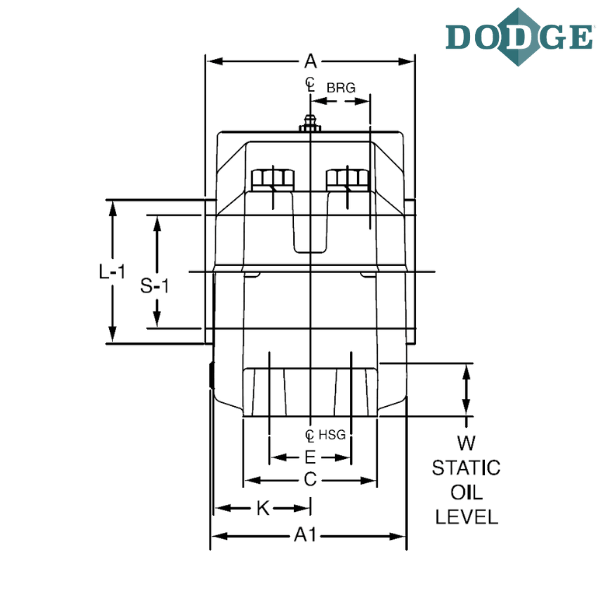

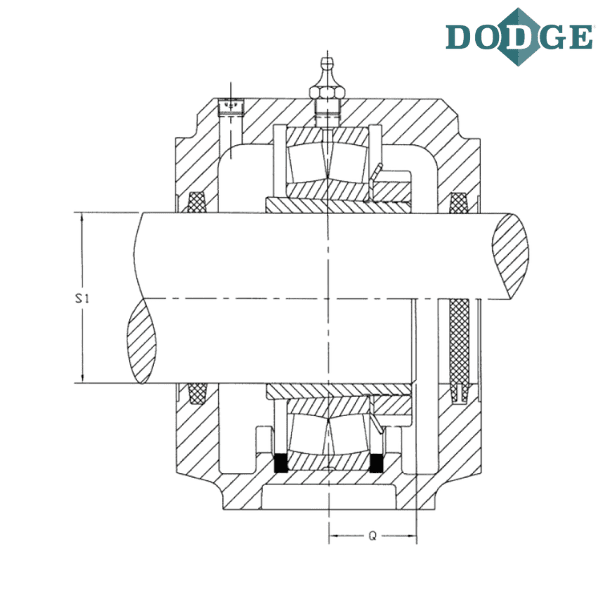

Shaft Size (S-1) mm - 50

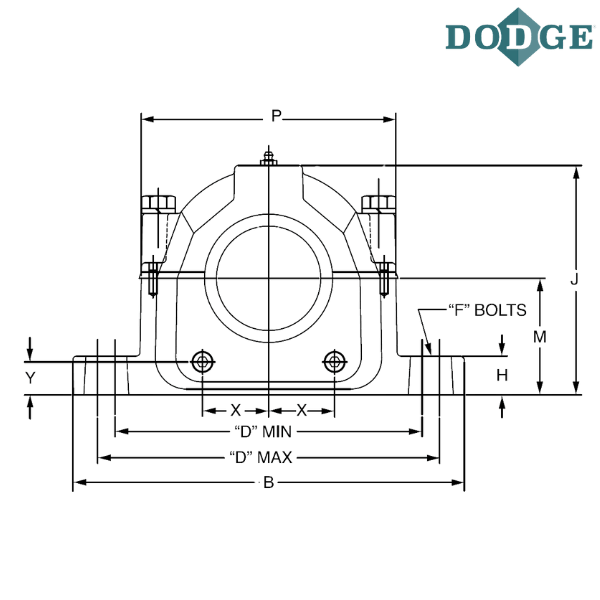

A1 (mm) - 113
Overall Length (B) mm - 279
C (mm) - 80
Bolt to Bolt Minimum Distance (D min) mm - 206
Bolt to Bolt Maximum Distance (D max) mm - 241
F-Bolt Diameter - M16
H (mm) - 30
Overall Height (J) mm - 155
K (mm) - 55
Base to Center Height (M) mm - 80
P (mm) - 165
Q (mm) - 34
Static Oil Level (W) mm - 33.9
X (mm) - 41
Y (mm) - 25
A (With LD Seal) mm - 110
A (FS Seal) mm - 110
A (With End Cover) mm - 110
A (With VR Seal) mm - 119
L1 (VR Seal) mm - 60

Notes :
SNX - Plummer Block to 140 mm

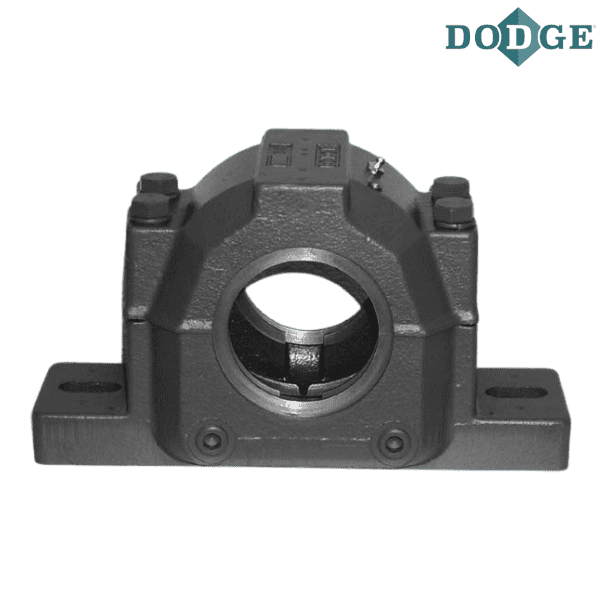

** Images are for representation purposes only
