747029 DODGE - SNX 513

Brand - DODGE
Item Number - 747029 DODGE - SNX 513
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 513
SK LD Seal Item Number - 496450 DODGE - SK 513 LD 60
SK FS Seal Item Number - 496468 DODGE - SK 513 FS 60
SK VR Seal Item Number - 496486 DODGE - SK 513 VR 60
Labyrinth Seal Item Number - 747332 DODGE - TS 513
Triple-Tect Seal Item Number - 747388 DODGE - TT 513
End Cover Item Number - 709152 DODGE - DK 75
Spherical Roller Bearing Item Number - 422124 DODGE - 22213EK1.C3
Fixing Ring Item Number - 747118 DODGE - SR 120x10
Fixing Ring Quantity - 2
Adapter Item Number - 046221 DODGE - H 313
Sight Glass Item Number - 740452 DODGE - SG 513
Self-aligning Ball Bearing Item Number - 052640 DODGE - 1213K.C3
Fixing Ring Item Number - 747181 DODGE - SR 120x14
Fixing Ring Quantity - 2
Adapter Item Number - 719376 DODGE - H 213
Self-aligning Ball Bearing Item Number - 702867 DODGE - 2213K.C3
Fixing Ring Item Number - 747118 DODGE - SR 120x10
Fixing Ring Quantity - 2
Adapter Item Number - 046221 DODGE - H 313
Weight (kg) - 9.7

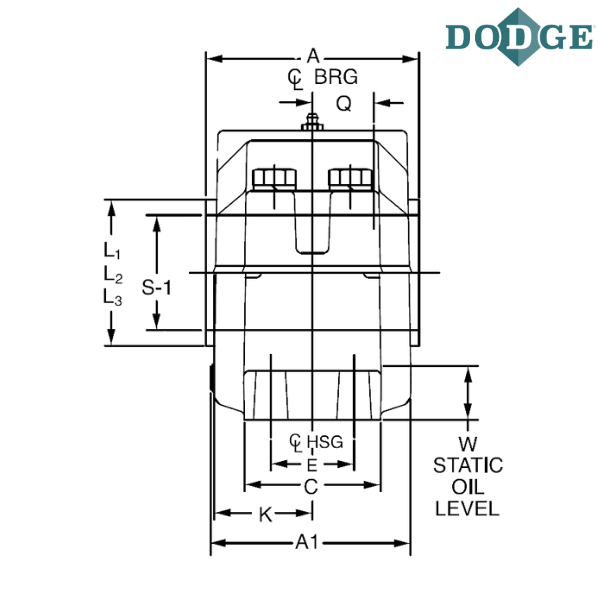

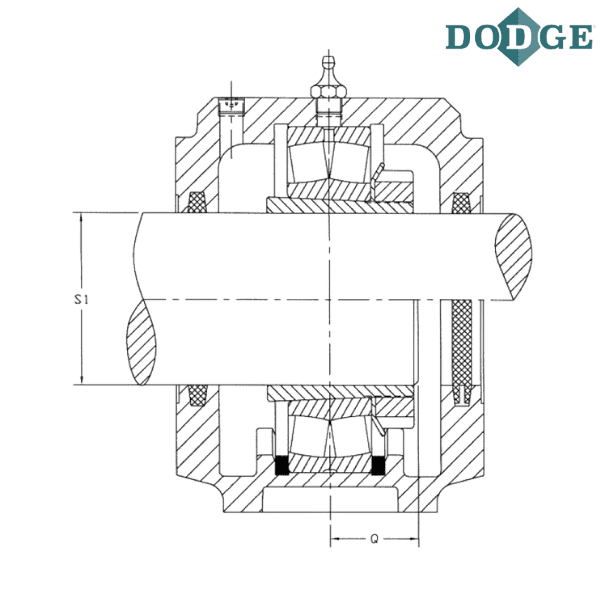

Shaft Size (S-1) mm - 60
A1 (mm) - 113
Overall Length (B) mm - 279
C (mm) - 80

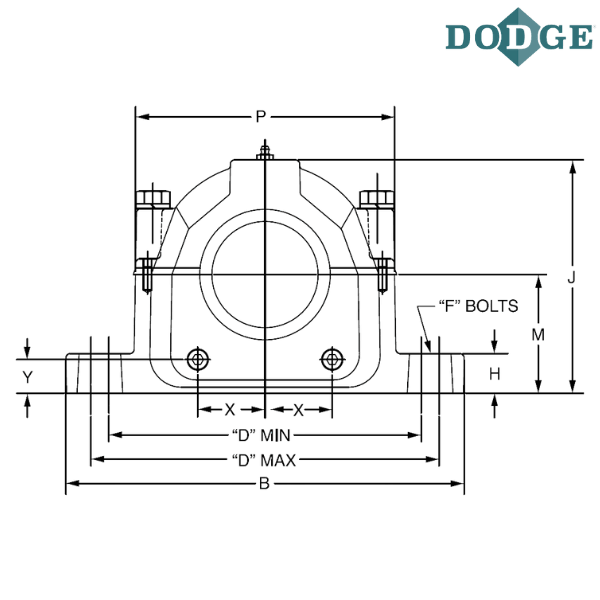

Bolt to Bolt Minimum Distance (D min) mm - 206
Bolt to Bolt Maximum Distance (D max) mm - 241
F-Bolt Diameter - M16
H (mm) - 30
Overall Height (J) mm - 155
K (mm) - 55
Base to Center Height (M) mm - 80
P (mm) - 165
Q (mm) - 30
Static Oil Level (W) mm - 27
X (mm) - 41
Y (mm) - 25
A (With LD Seal) mm - 110
A (With FS Seal) mm - 110
A (With VR Seal) mm - 119
A (With TS Seal) mm - 121
A (With TT Seal) mm - 125
A (With DK End Cover) mm - 110
L1 (VR Seal) mm - 70
L2 (TS Seal) mm - 81
L3 (TT) mm - 92

Notes :
SNX - Plummer Block to 140 mm
