747029 DODGE - SNX 213

Brand - DODGE
Item Number - 747029 DODGE - SNX 213
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 213
LD Seal Item Number - 725361 DODGE - LD 75
FS Seal Item Number - 713633 DODGE - 7.5X9X260
VR Seal Item Number - 738149 DODGE - VS0075
DK End Cover Item Number - 709152 DODGE - DK 75
Spherical Roller Bearing Item Number - 421264 DODGE - 22213E1.C3
Fixing Ring Item Number - 747118 DODGE - SR 120x10
Fixing Ring Quantity - 2
Locknut Item Number - 046288 DODGE - KM 13
Lockwasher Item Number - 046307 DODGE - MB 13
Sight Glass Item Number - 740452 DODGE - SG 213
Weight (kg) - 9.7

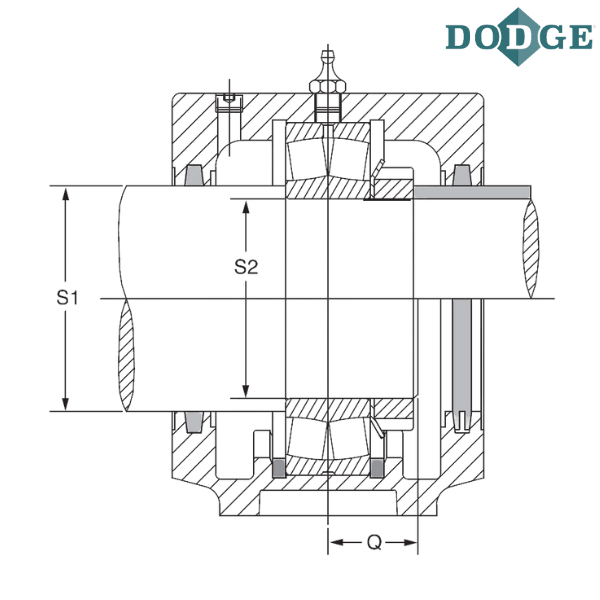

Shaft Size (S-1) mm - 75
Shaft Size (S-2) mm - 65

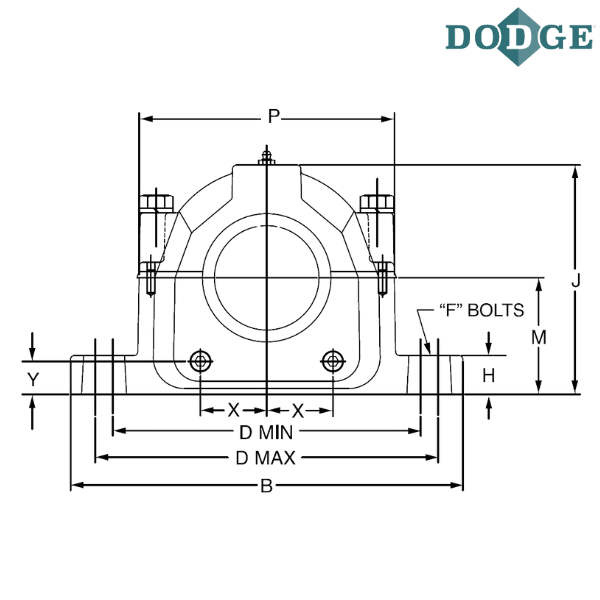

A1 (mm) - 113
Overall Length (B) mm - 279
C (mm) - 80
Bolt to Bolt Minimum Distance (D min) mm - 206
Bolt to Bolt Maximum Distance (D max) mm - 241
F-Bolt Diameter - M16
H (mm) - 30
Overall Height (J) mm - 155
K (mm) - 55
Base to Center Height (M) mm - 80
P (mm) - 165
Q (mm) - 15.5

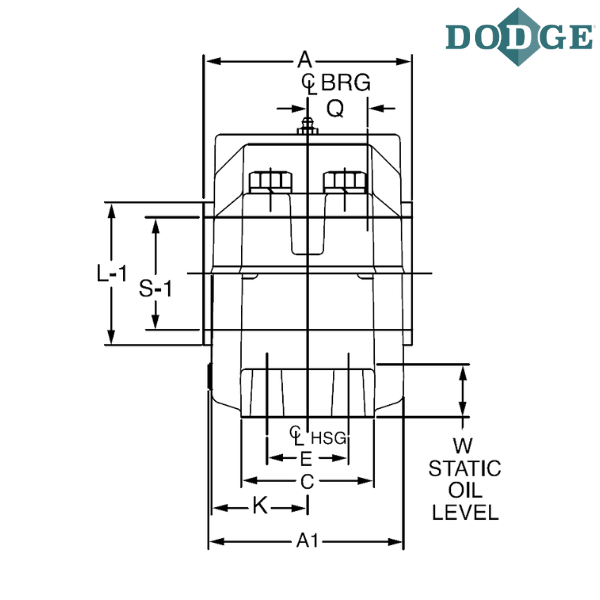

Static Oil Level (W) mm - 27
X (mm) - 41
Y (mm) - 25
A (With LD Seal) mm - 110
A (With FS Seal) mm - 110
A (With DK End Cover) mm - 110
A (With TS Seal) mm - 121
A (With VR Seal) mm - 123
L-1 (mm) - 79

Notes :
SNX - Plummer Block to 140 mm

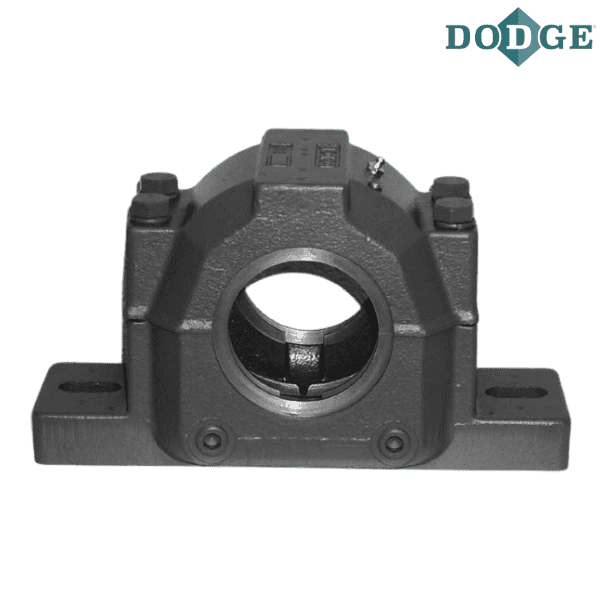

** Images are for representation purposes only
