747028 DODGE - SNX 512

Brand - DODGE
Item Number - 747028 DODGE - SNX 512
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 512
SK LD Seal Item Number - 496449 DODGE - SK 512 LD 55
SK FS Seal Item Number - 496467 DODGE - SK 512 FS 55
SK VR Seal Item Number - 496485 DODGE - SK 512 VR 55
Labyrinth Seal Item Number - 747331 DODGE - TS 512
Triple-Tect Seal Item Number - 747387 DODGE - TT 512
End Cover Item Number - 709146 DODGE - DK 70
Spherical Roller Bearing Item Number - 422978 DODGE - 22212EK1.C3
Fixing Ring Item Number - 747115 DODGE - SR 110x10
Fixing Ring Quantity - 2
Adapter Item Number - 046333 DODGE - H 312
Sight Glass Item Number - 740452 DODGE - SG 512
Self-aligning Ball Bearing Item Number - 739145 DODGE - 1212K.C3
Fixing Ring Item Number - 747180 DODGE - SR 110x13
Fixing Ring Quantity - 2
Adapter Item Number - 719375 DODGE - H 212
Self-aligning Ball Bearing Item Number - 702857 DODGE - 2212K.C3
Fixing Ring Item Number - 747115 DODGE - SR 110x10
Fixing Ring Quantity - 2
Adapter Item Number - 046333 DODGE - H 312
Weight (kg) - 9.5

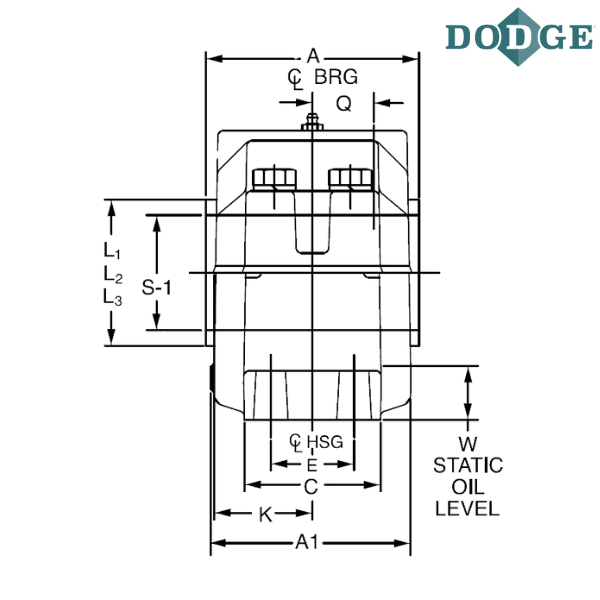

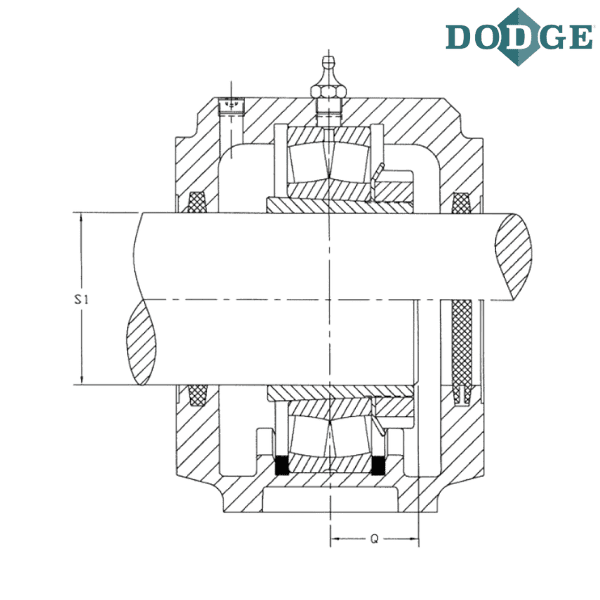

Shaft Size (S-1) mm - 55

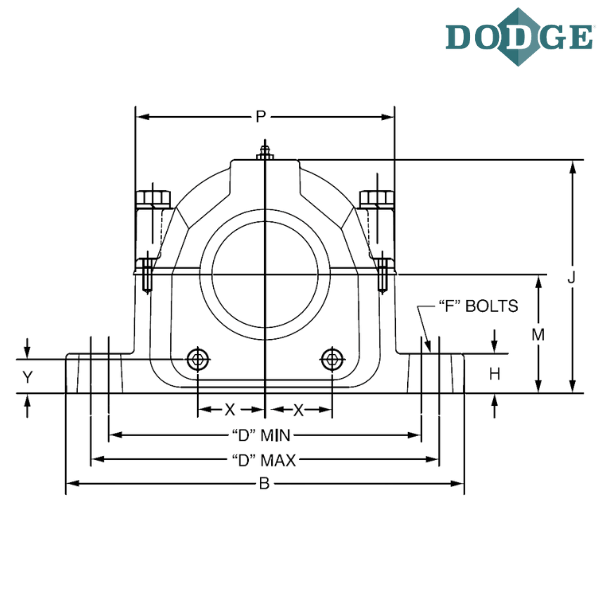

A1 (mm) - 116
Overall Length (B) mm - 270
C (mm) - 70
Bolt to Bolt Minimum Distance (D min) mm - 197
Bolt to Bolt Maximum Distance (D max) mm - 230
F-Bolt Diameter - M16
H (mm) - 29
Overall Height (J) mm - 139
K (mm) - 56
Base to Center Height (M) mm - 70
P (mm) - 156
Q (mm) - 27
Static Oil Level (W) mm - 32
X (mm) - 38
Y (mm) - 20
A (With LD Seal) mm - 112
A (With FS Seal) mm - 112
A (With VR Seal) mm - 121
A (With TS Seal) mm - 119
A (With TT Seal) mm - 127
A (With DK End Cover) mm - 112
L1 (VR Seal) mm - 65
L2 (TS Seal) mm - 75
L3 (TT) mm - 82

Notes :
SNX - Plummer Block to 140 mm
