747028 DODGE - SNX 212

Brand - DODGE
Item Number - 747028 DODGE - SNX 212
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 212
LD Seal Item Number - 725360 DODGE - LD 70
FS Seal Item Number - 713633 DODGE - 7.5X9X260
VR Seal Item Number - 738148 DODGE - VS0070
DK End Cover Item Number - 709146 DODGE - DK 70
Spherical Roller Bearing Item Number - 421263 DODGE - 22212E1.C3
Fixing Ring Item Number - 747115 DODGE - SR 110x10
Fixing Ring Quantity - 2
Locknut Item Number - 046487 DODGE - KM 12
Lockwasher Item Number - 046489 DODGE - MB 12
Sight Glass Item Number - 740452 DODGE - SG 212
Weight (kg) - 9.5

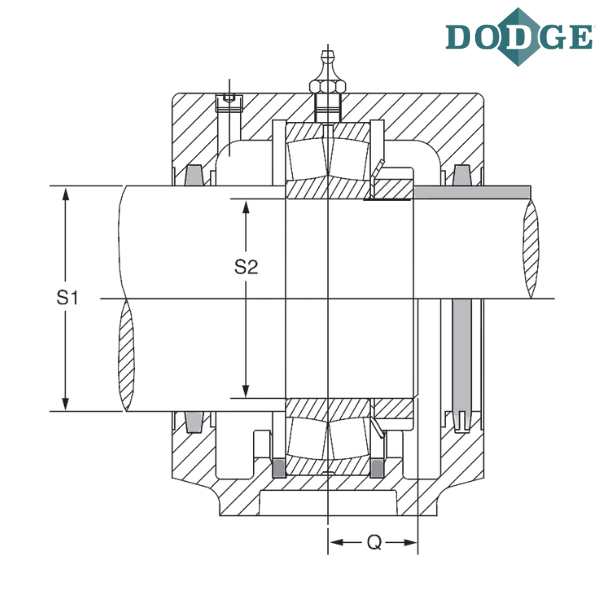

Shaft Size (S-1) mm - 70
Shaft Size (S-2) mm - 60

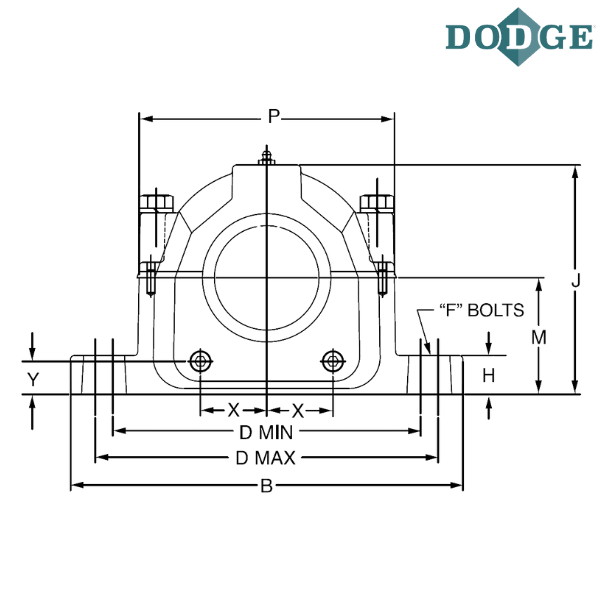

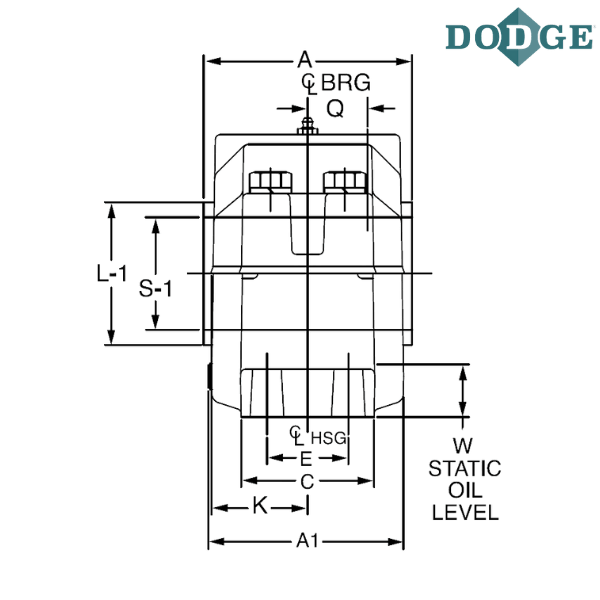

A1 (mm) - 116
Overall Length (B) mm - 270
C (mm) - 70
Bolt to Bolt Minimum Distance (D min) mm - 197
Bolt to Bolt Maximum Distance (D max) mm - 230
F-Bolt Diameter - M16
H (mm) - 29
Overall Height (J) mm - 139
K (mm) - 56
Base to Center Height (M) mm - 70
P (mm) - 156
Q (mm) - 14
Static Oil Level (W) mm - 32
X (mm) - 38
Y (mm) - 20
A (With LD Seal) mm - 112
A (With FS Seal) mm - 112
A (With DK End Cover) mm - 112
A (With TS Seal) mm - 119
A (With VR Seal) mm - 125
L-1 (mm) - 75

Notes :
SNX - Plummer Block to 140 mm

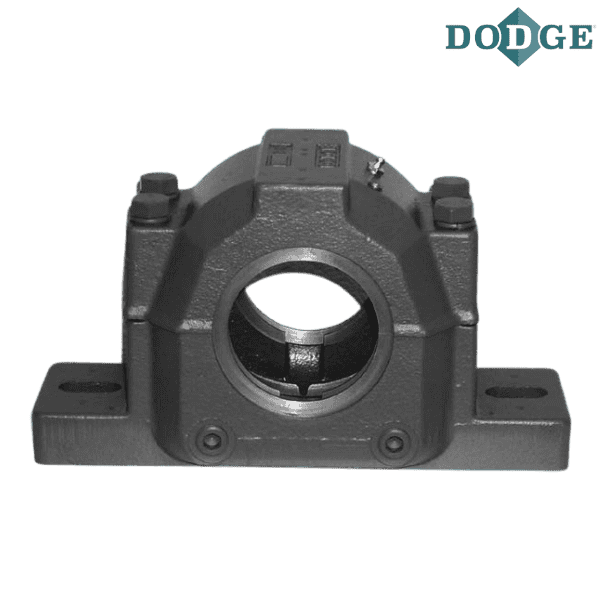

** Images are for representation purposes only
