747027 DODGE - SNX 609

Brand - DODGE
Item Number - 747027 DODGE - SNX 609
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 609
SK LD Seal Item Number - 496413 DODGE - SK 609 LD 40
SK FS Seal Item Number - 496424 DODGE - SK 609 FS 40
SK VR Seal Item Number - 496435 DODGE - SK 609 VR 40
End Cover Item Number - 709143 DODGE - DK 65
Spherical Roller Bearing Item Number - 423100 DODGE - 22309E1K.C3
Fixing Ring Item Number - 747110 DODGE - SR 100X4
Fixing Ring Quantity - 2
Adapter Item Number - 046711 DODGE - H 2309
Sight Glass Item Number - 740452 DODGE - SG 609
Weight (kg) - 7.1

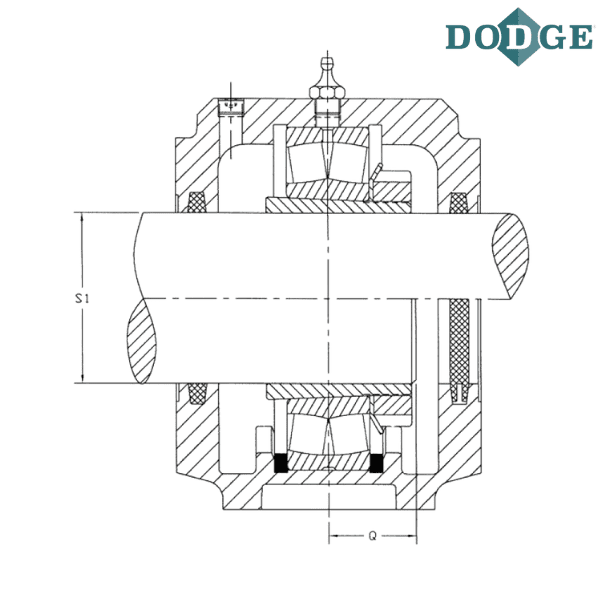

Shaft Size (S-1) mm - 40

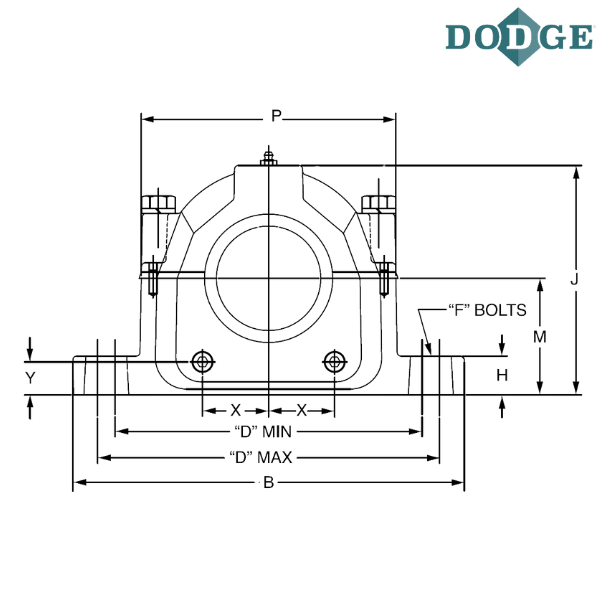

A1 (mm) - 104
Overall Length (B) mm - 244
C (mm) - 70
Bolt to Bolt Minimum Distance (D min) mm - 187
Bolt to Bolt Maximum Distance (D max) mm - 210
F-Bolt Diameter - M16
H (mm) - 26
Overall Height (J) mm - 133
K (mm) - 50
Base to Center Height (M) mm - 70
P (mm) - 147
Q (mm) - 29

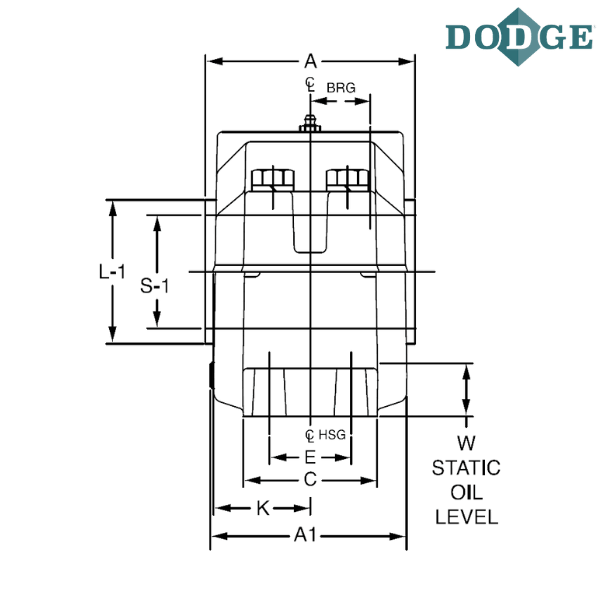

Static Oil Level (W) mm - 32.5
X (mm) - 33
Y (mm) - 22
A (With LD Seal) mm - 100
A (FS Seal) mm - 100
A (With End Cover) mm - 100
A (With VR Seal) mm - 110
L1 (VR Seal) mm - 50

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
