747027 DODGE - SNX 211

Brand - DODGE
Item Number - 747027 DODGE - SNX 211
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)

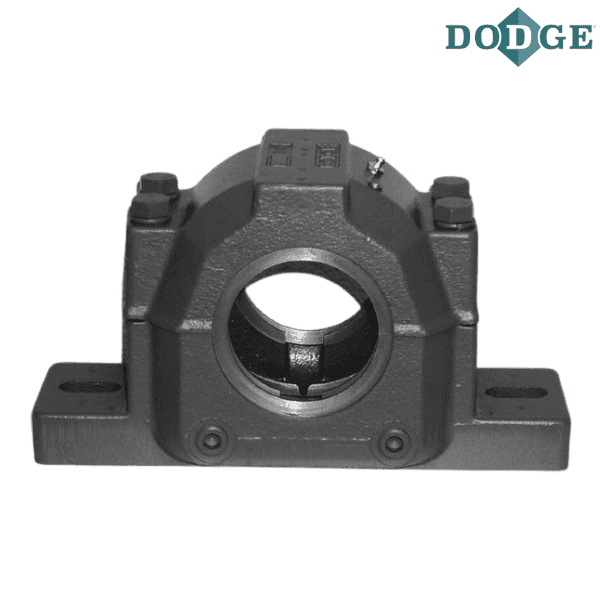

Description - SNX 211
LD Seal Item Number - 725359 DODGE - LD 65
FS Seal Item Number - 713616 DODGE - 6.5X8X230
VR Seal Item Number - 738147 DODGE - VS0065
DK End Cover Item Number - 709143 DODGE - DK 65
Spherical Roller Bearing Item Number - 421262 DODGE - 22211E1.C3
Fixing Ring Item Number - 747111 DODGE - SR 100x9.5
Fixing Ring Quantity - 2
Locknut Item Number - 046287 DODGE - KM 11
Lockwasher Item Number - 046306 DODGE - MB 11
Sight Glass Item Number - 740452 DODGE - SG 211
Weight (kg) - 7.1

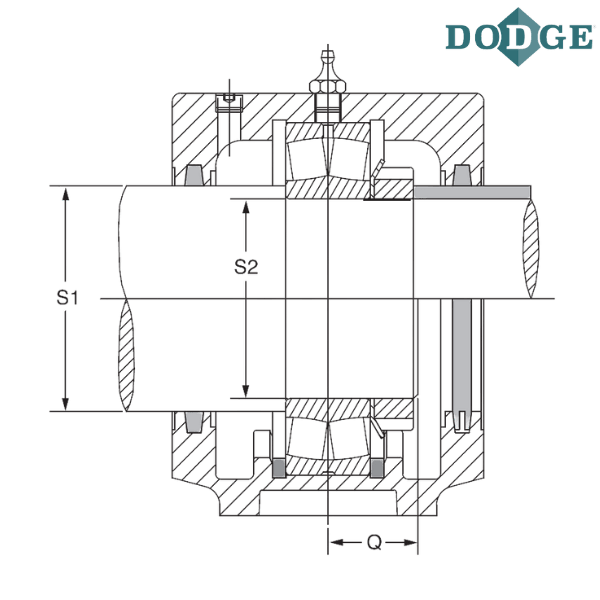

Shaft Size (S-1) mm - 65
Shaft Size (S-2) mm - 55

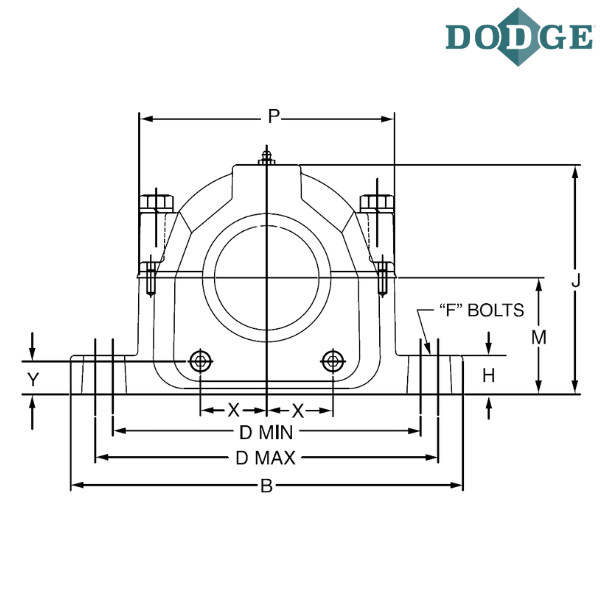

A1 (mm) - 104
Overall Length (B) mm - 244
C (mm) - 70
Bolt to Bolt Minimum Distance (D min) mm - 187
Bolt to Bolt Maximum Distance (D max) mm - 210
F-Bolt Diameter - M16
H (mm) - 26
Overall Height (J) mm - 133
K (mm) - 50
Base to Center Height (M) mm - 70
P (mm) - 147
Q (mm) - 12.5

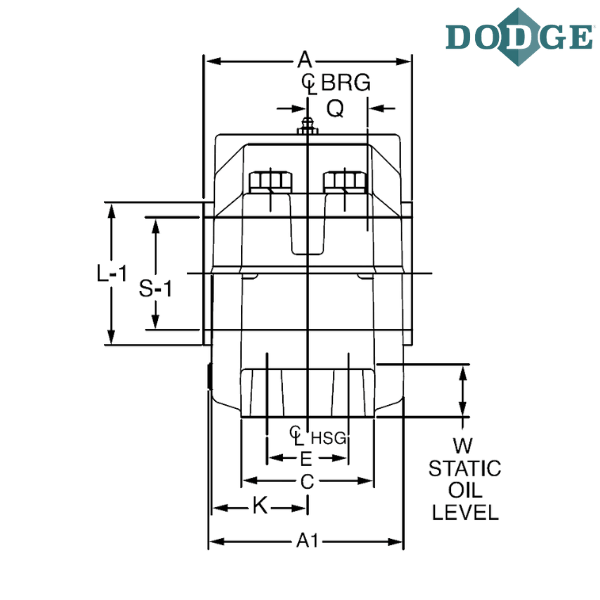

Static Oil Level (W) mm - 28.5
X (mm) - 33
Y (mm) - 22
A (With LD Seal) mm - 100
A (With FS Seal) mm - 100
A (With DK End Cover) mm - 100
A (With TS Seal) mm - 108
A (With VR Seal) mm - 110
L-1 (mm) - 68

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
