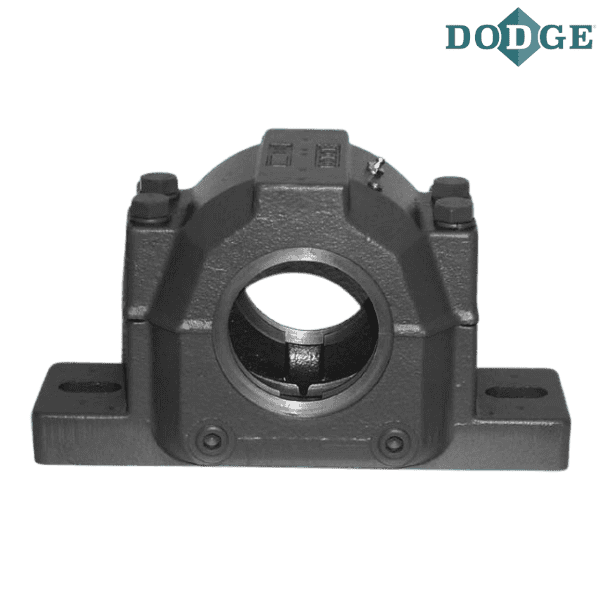

747026 DODGE - SNX 308

Brand - DODGE
Item Number - 747026 DODGE - SNX 308
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 308
SK FS Seal Item Number - 496400 DODGE - SK 308 FS 50
End Cover Item Number - 709140 DODGE - DK 60
Sight Glass Item Number - 740452 DODGE - SG 308
Spherical Roller Bearing Item Number - 423124 DODGE - 22308E1.C3
Fixing Ring Item Number - 747107 DODGE - SR 90X4
Fixing Ring Quantity - 2
Locknut Item Number - 046492 DODGE - KM 8
Lockwasher Item Number - 046496 DODGE - MB 8
Weight (kg) - 5.1

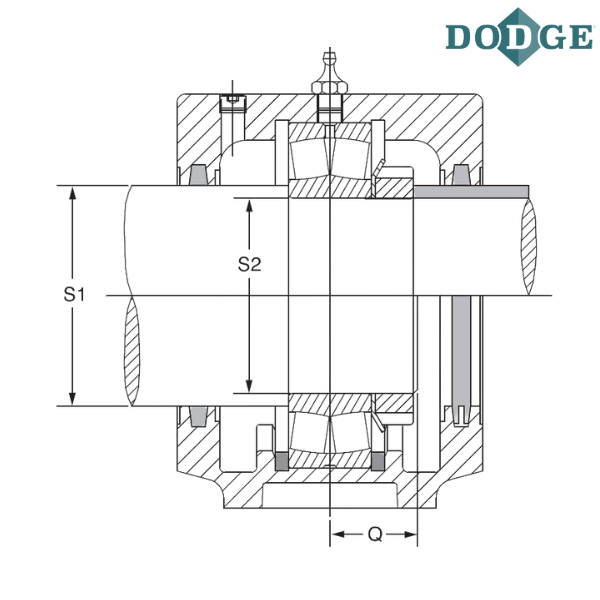

Shaft Size (S-1) mm - 50
Shaft Size (S-2) mm - 40

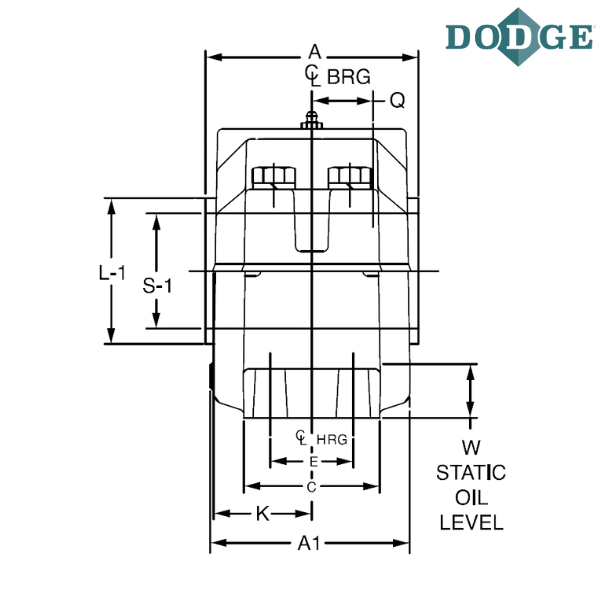

A1 (mm) - 99.1

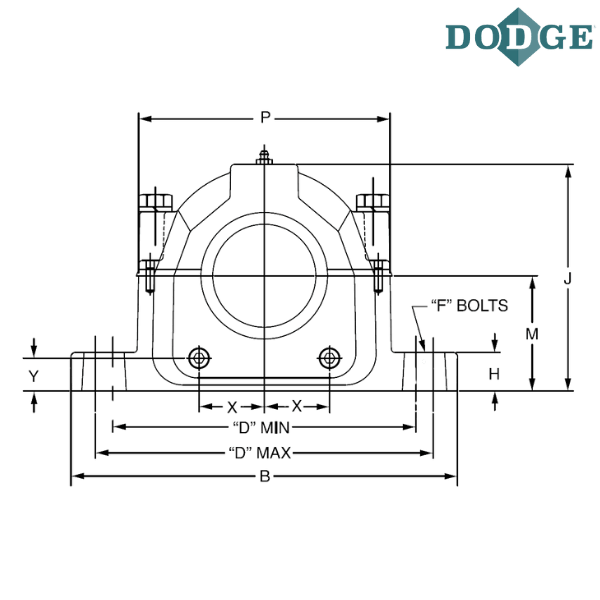

Overall Length (B) mm - 210
C (mm) - 59.5
Bolt to Bolt Minimum Distance (D min) mm - 165.1
Bolt to Bolt Maximum Distance (D max) mm - 177.8
F-Bolt Diameter - M12
H (mm) - 22.6
Overall Height (J) mm - 113
K (mm) - 47.6
Base to Center Height (M) mm - 59.9
P (mm) - 130.2
Q (mm) - 18
Static Oil Level (W) mm - 26.5
X (mm) - 30.5
Y (mm) - 17
A (With FS Seal) mm - 95.3
A (With DK End Cover) mm - 95.3
L1 (mm) - 64.3

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
