747025 DODGE - SNX 509

Brand - DODGE
Item Number - 747025 DODGE - SNX 509
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 509
SK LD Seal Item Number - 496446 DODGE - SK 509 LD 40
SK FS Seal Item Number - 496464 DODGE - SK 509 FS 40
SK VR Seal Item Number - 496482 DODGE - SK 509 VR 40
Labyrinth Seal Item Number - 747328 DODGE - TS 509
Triple-Tect Seal Item Number - 747384 DODGE - TT 509
End Cover Item Number - 709137 DODGE - DK 55

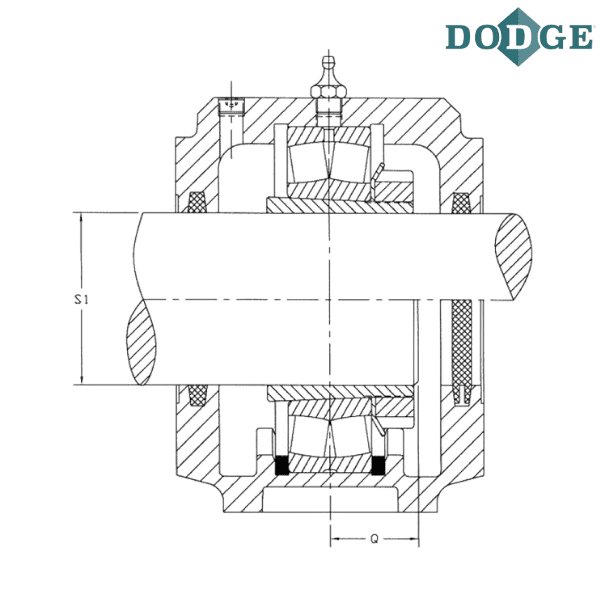

Spherical Roller Bearing Item Number - 422134 DODGE - 22209EK1.C3
Fixing Ring Item Number - 747105 DODGE - SR 85x3.5
Fixing Ring Quantity - 2
Adapter Item Number - 046331 DODGE - H 309
Sight Glass Item Number - 740452 DODGE - SG 509
Self-aligning Ball Bearing Item Number - 052637 DODGE - 1209K.C3
Fixing Ring Item Number - 747177 DODGE - SR 85x5.5
Fixing Ring Quantity - 2
Adapter Item Number - 719372 DODGE - H 209
Self-aligning Ball Bearing Item Number - 739150 DODGE - 2209K.C3
Fixing Ring Item Number - 747105 DODGE - SR 85x3.5
Fixing Ring Quantity - 2
Adapter Item Number - 046331 DODGE - H 309
Weight (kg) - 4.3

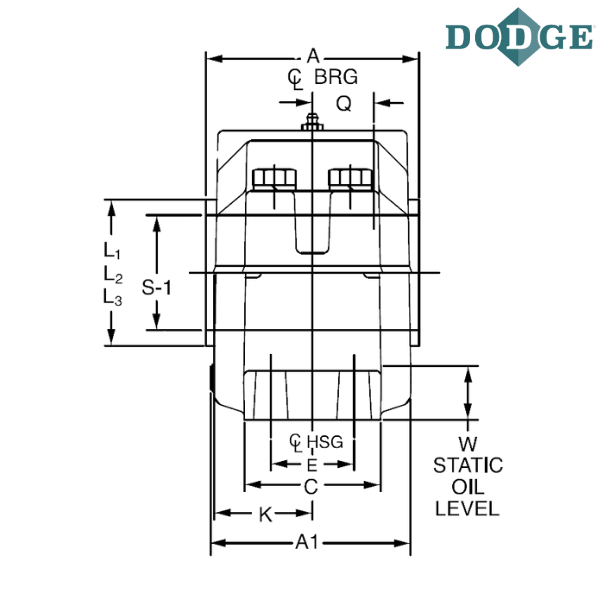

Shaft Size (S-1) mm - 40
A1 (mm) - 94

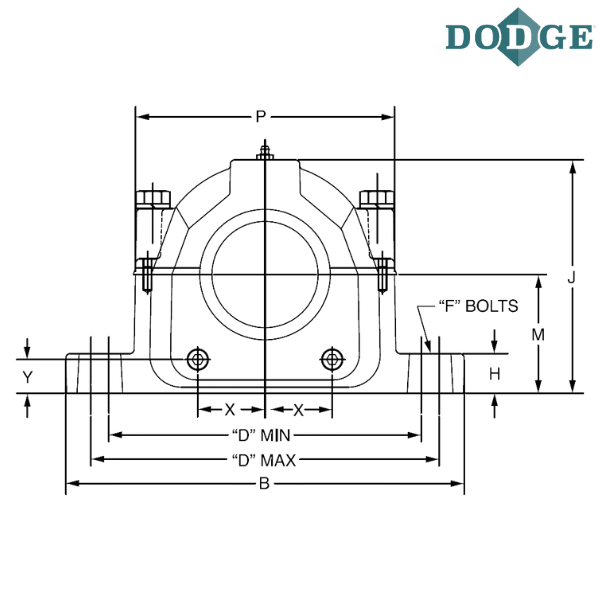

Overall Length (B) mm - 210
C (mm) - 60
Bolt to Bolt Minimum Distance (D min) mm - 159
Bolt to Bolt Maximum Distance (D max) mm - 178
F-Bolt Diameter - M12
H (mm) - 25
Overall Height (J) mm - 112
K (mm) - 45
Base to Center Height (M) mm - 60
P (mm) - 124
Q (mm) - 23
Static Oil Level (W) mm - 24
X (mm) - 29
Y (mm) - 20
A (With LD Seal) mm - 91
A (With FS Seal) mm - 91
A (With VR Seal) mm - 100
A (With TS Seal) mm - 99
A (With TT Seal) mm - 107
A (With DK End Cover) mm - 91
L1 (VR Seal) mm - 50
L2 (TS Seal) mm - 55
L3 (TT) mm - 65

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
