747025 DODGE - SNX 209

Brand - DODGE
Item Number - 747025 DODGE - SNX 209
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 209
LD Seal Item Number - 725357 DODGE - LD 55
FS Seal Item Number - 713600 DODGE - 6.5X8X200
VR Seal Item Number - 738145 DODGE - VS0055
DK End Cover Item Number - 709137 DODGE - DK 55
Spherical Roller Bearing Item Number - 421260 DODGE - 22209E1.C3
Fixing Ring Item Number - 747105 DODGE - SR 85x3.5
Fixing Ring Quantity - 2
Locknut Item Number - 046285 DODGE - KM 9
Lockwasher Item Number - 046304 DODGE - MB 9
Sight Glass Item Number - 740452 DODGE - SG 209
Weight (kg) - 4.3

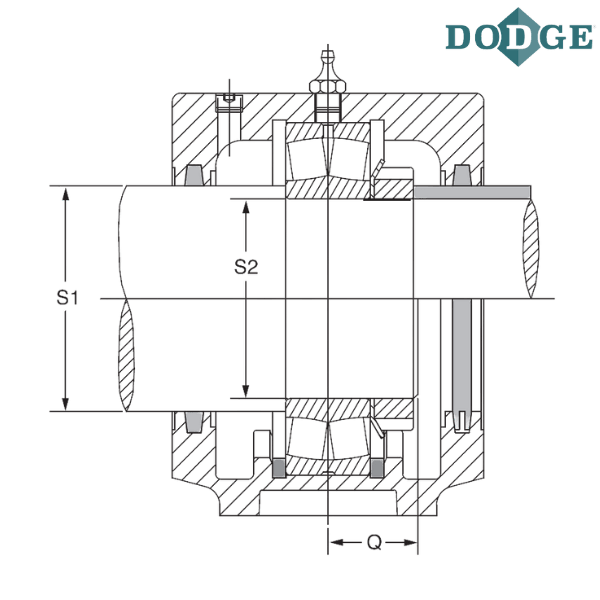

Shaft Size (S-1) mm - 55
Shaft Size (S-2) mm - 45

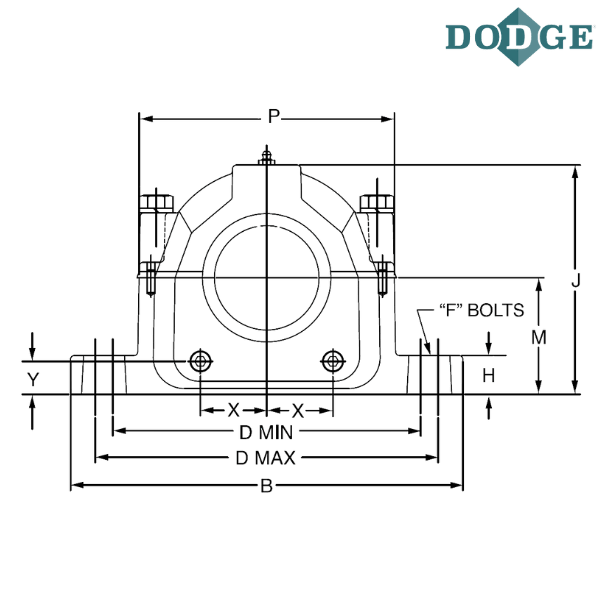

A1 (mm) - 94
Overall Length (B) mm - 210
C (mm) - 60
Bolt to Bolt Minimum Distance (D min) mm - 159
Bolt to Bolt Maximum Distance (D max) mm - 178
F-Bolt Diameter - M12
H (mm) - 25
Overall Height (J) mm - 112
K (mm) - 45
Base to Center Height (M) mm - 60
P (mm) - 124
Q (mm) - 11.5
Static Oil Level (W) mm - 24
X (mm) - 29
Y (mm) - 20

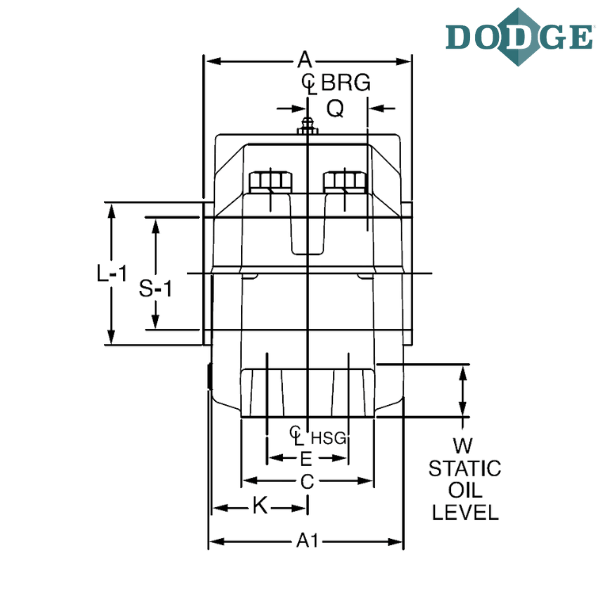

A (With LD Seal) mm - 91
A (With FS Seal) mm - 91
A (With DK End Cover) mm - 91
A (With TS Seal) mm - 99
A (With VR Seal) mm - 100
L-1 (mm) - 59

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
