73562/73875 TIMKEN

Brand - TIMKEN
Item Number - 73562/73875 TIMKEN
Also Known As - 73562 - 73875
Category - Single Row Tapered Roller Bearing (TS Type)

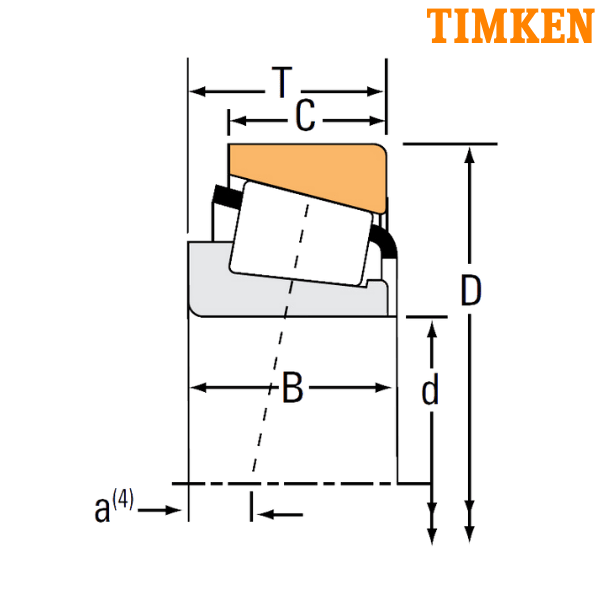

Bore Diameter (d) mm - 142.875
Bore Diameter (d) inch - 5.625
Outer Diameter (D) mm - 222.25
Outer Diameter (D) inch - 8.75
Width (T) mm - 34.925
Width (T) inch - 1.375
Dynamic Load Rating (C1) N - 293000
Dynamic Load Rating (C1) lbf - 65800
Factor (e) - 0.44
Factor (Y) - 1.37
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 75900
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 17100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 56800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 12800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.34
Basic Static Radial Load Rating (C0) N - 342000
Basic Static Radial Load Rating (C0) lbf - 77000
Cone Width (B) mm - 31.623
Cone Width (B) inch - 1.245
Cup Width (C) mm - 23.812
Cup Width (C) inch - 0.9375
Effective Center Location (a) mm - 6.4
Effective Center Location (a) inch - 0.25
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14

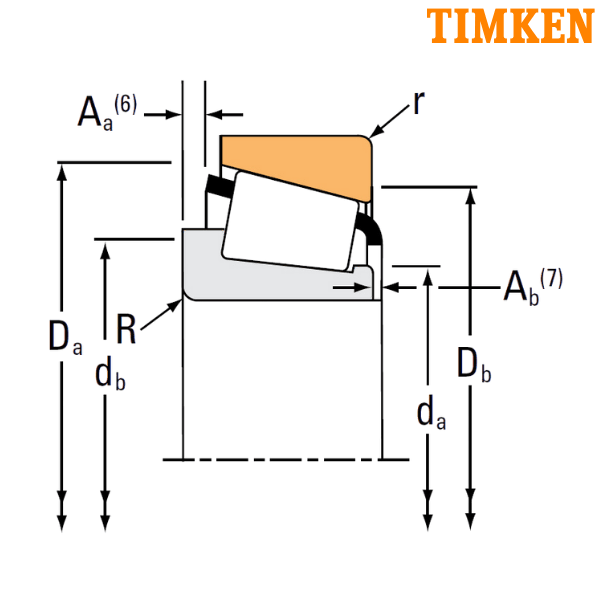

Cone Frontface Backing Diameter (da) mm - 152
Cone Frontface Backing Diameter (da) inch - 5.98
Cone Backface Backing Diameter (db) mm - 159
Cone Backface Backing Diameter (db) inch - 6.26
Max Housing Fillet Radius (r) mm - 3.3
Max Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 207
Cup Frontface Backing Diameter (Da) inch - 8.15
Cup Backface Backing Diameter (Db) mm - 204
Cup Backface Backing Diameter (Db) inch - 8.03
Cage-Cone Backface Clearance (Aa) mm - 5.7
Cage-Cone Backface Clearance (Aa) inch - 0.22
Cage-Cone Frontface Clearance (Ab) mm - 4
Cage-Cone Frontface Clearance (Ab) inch - 0.16
Geometry Factor (G1) - 244.4
Geometry Factor (G2) - 82
Geometry Factor (Cg) - 0.1122
Weight (kg) - 4.11
Weight (lbs) - 9.05
Inner Part Number - 73562
Outer Part Number - 73875

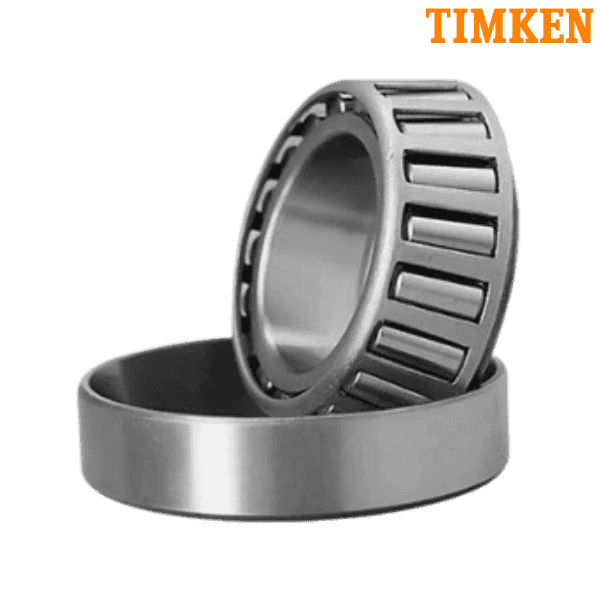

TS - Single Row Tapered Roller Bearing

** Images are for representation purposes only
