7319-B-XL-JP FAG

Brand - FAG
Item Number - 7319-B-XL-JP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 95
Outside Diameter (D) mm - 200
Width (B) mm - 45
Basic Dynamic Load Rating, Radial (Cr) N - 189000
Basic Static Load Rating, Radial (C0r) N - 167000
Fatigue Load Limit, Radial (Cur) N - 9600
Limiting Speed (nG) min–1 - 4000
Reference Speed (nϑr) min–1 - 3800
Weight (m) kg - 5.93
Minimum Chamfer Dimension (r min) mm - 3
Minimum Chamfer Dimension (r1 min) mm - 1.1
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 159.5
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 137.1
Distance Between the Apexes of the Pressure Cones (a) mm - 84
Nominal Contact Angle (α)° - 40

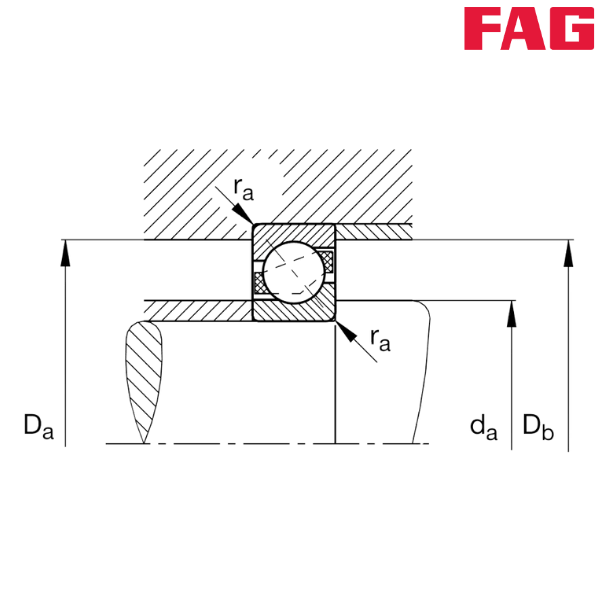

Minimum Diameter of Shaft Shoulder (da) mm - 109
Maximum Diameter of Housing Shoulder (Da) mm - 186
Maximum Diameter of Housing Shoulder (Db) mm - 193
Maximum Fillet Radius of Shaft (ra) mm - 2.5
Maximum Fillet Radius of Housing (ra1) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
JP - Sheet Steel Cage
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type

** Images are for representation purposes only
