Description
Brand - NILOS
Item Number - 7317 AVH NILOS
Category - NILOS-RING for Single Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 85 mm
Outer Diameter (a) - 169 mm
Dimension (C) - 140 mm
Widtth (h) - 4 mm
Material Thickness (s) - 0.5 mm

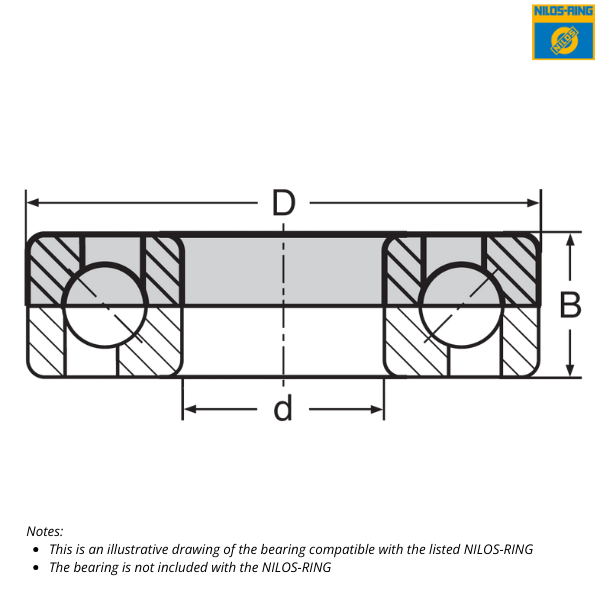

Description of Compatible Bearing (73 Series Side H) :
Bearing Part Number - 7317
Bearing Type - Single Row Angular Contact Ball Bearing
Inner Diameter (d) - 85 mm
Outer Diameter (D) - 180 mm
Width (B) - 41 mm
♦♦ Images are for representation purposes only
Item Number - 7317 AVH NILOS
Category - NILOS-RING for Single Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 85 mm
Outer Diameter (a) - 169 mm
Dimension (C) - 140 mm
Widtth (h) - 4 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (73 Series Side H) :
Bearing Part Number - 7317
Bearing Type - Single Row Angular Contact Ball Bearing
Inner Diameter (d) - 85 mm
Outer Diameter (D) - 180 mm
Width (B) - 41 mm
♦♦ Images are for representation purposes only
