Description
Brand - SKF

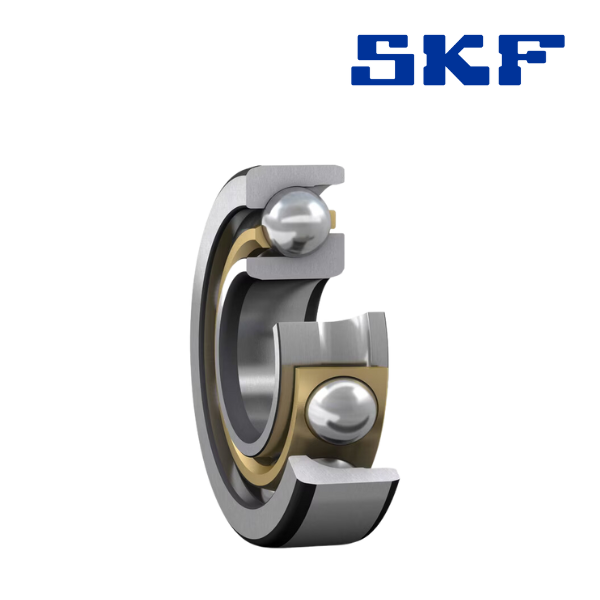

Item Number - 7316CDGA/P4A SKF
Also known as - 2MM316WI CR SUL 316HCUL 7316 C TR SUL P3 7316C T1 G/GL P42 B7316C.T.P4S.UL
Inner (d) MM - 80
Outer (D) MM - 170
Width (B) MM - 39
Weight (kg) - 3.8
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 15 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - GA - Light Preload
Lubrication - Standard Lubrication
