7311-B-XL-JP FAG

Brand - FAG
Item Number - 7311-B-XL-JP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 55
Outside Diameter (D) mm - 120
Width (B) mm - 29
Basic Dynamic Load Rating, Radial (Cr) N - 86000
Basic Static Load Rating, Radial (C0r) N - 61000
Fatigue Load Limit, Radial (Cur) N - 4250
Limiting Speed (nG) min–1 - 7000
Reference Speed (nϑr) min–1 - 5600
Weight (m) kg - 1.46
Minimum Chamfer Dimension (r min) mm - 2
Minimum Chamfer Dimension (r1 min) mm - 1
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 95.3
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 80.3
Distance Between the Apexes of the Pressure Cones (a) mm - 51
Nominal Contact Angle (α)° - 40

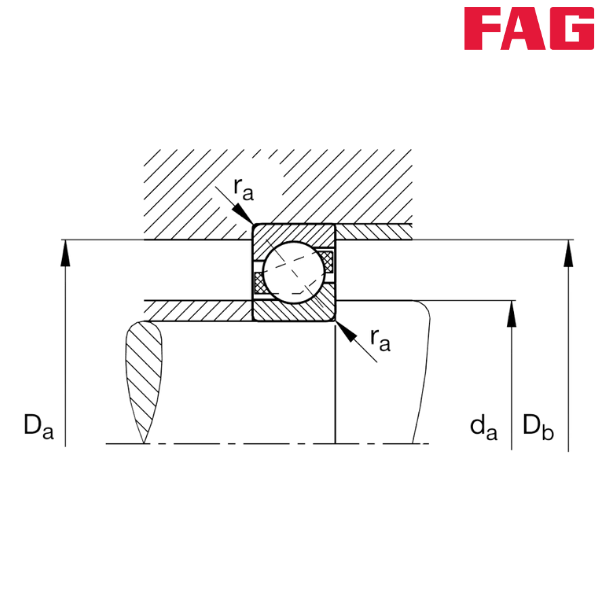

Minimum Diameter of Shaft Shoulder (da) mm - 66
Maximum Diameter of Housing Shoulder (Da) mm - 109
Maximum Diameter of Housing Shoulder (Db) mm - 114.4
Maximum Fillet Radius of Shaft (ra) mm - 2
Maximum Fillet Radius of Housing (ra1) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
JP - Sheet Steel Cage
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
