Description
Brand - ZEN
Item Number - 7309-B-2RS ZEN

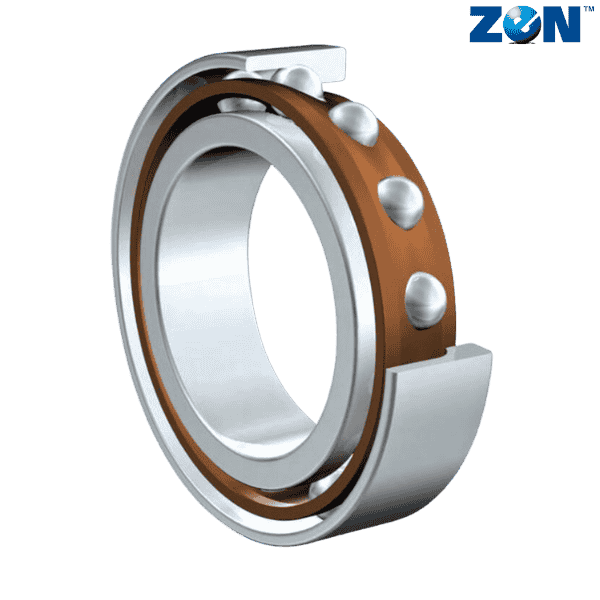

Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 45
Outer Ring Dimension (D) mm - 100
Width (B) mm - 25
Dynamic Load Rating (N) - 60500
Static Load Rating (N) - 38800
Limiting Speed (Grease) - 6.1
Limiting Speed (Oil) - 8.2
Weight (kg) - 0.81
Radial Play - 0.011-0.033
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
