Description
Brand - ZEN
Item Number - 7308-B-2RS ZEN

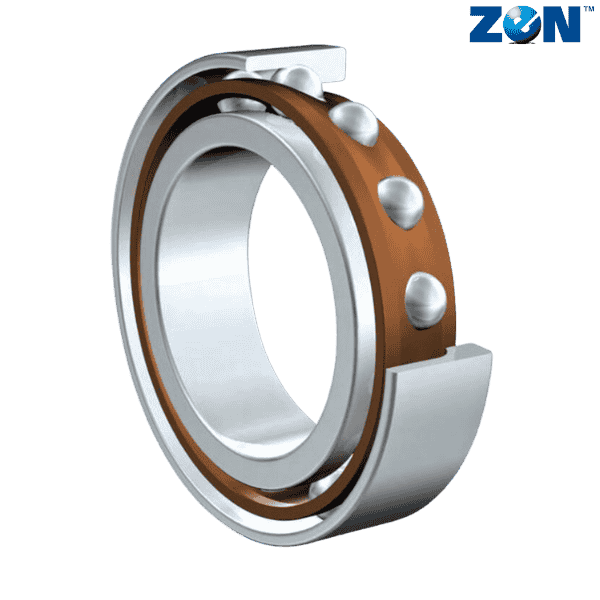

Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 40
Outer Ring Dimension (D) mm - 90
Width (B) mm - 23
Dynamic Load Rating (N) - 49300
Static Load Rating (N) - 29900
Limiting Speed (Grease) - 6.8
Limiting Speed (Oil) - 9.1
Weight (kg) - 0.6
Radial Play - 0.009-0.029
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
