Description
Brand - ZEN
Item Number - 7304-B-2RS ZEN
Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 20
Outer Ring Dimension (D) mm - 52
Width (B) mm - 15
Dynamic Load Rating (N) - 19300
Static Load Rating (N) - 9900
Limiting Speed (Grease) - 11.7
Limiting Speed (Oil) - 16
Weight (kg) - 0.15
Radial Play - 0.007-0.025
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals

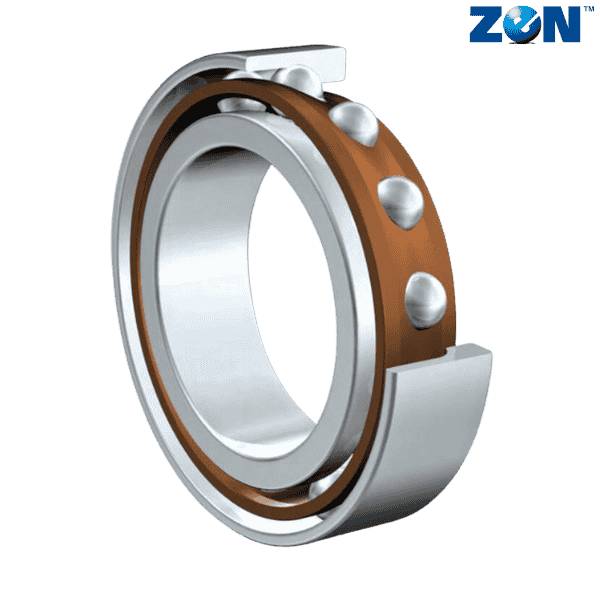

** Images are for representation purposes only
