Description
Brand - NILOS
Item Number - 7303 AVG NILOS
Category - NILOS-RING for Single Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 17 mm
Outer Diameter (a) - 41.2 mm
Dimension (C) - 29 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm

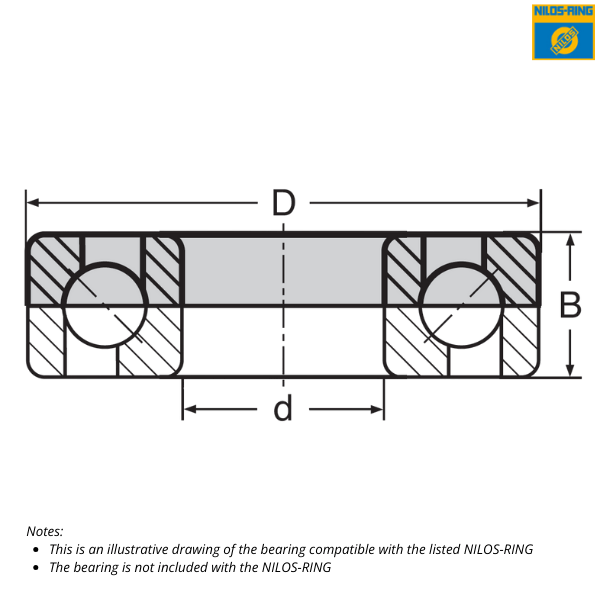

Description of Compatible Bearing (73 Series Side G) :
Bearing Part Number - 7303
Bearing Type - Single Row Angular Contact Ball Bearing
Inner Diameter (d) - 17 mm
Outer Diameter (D) - 47 mm
Width (B) - 14 mm
♦♦ Images are for representation purposes only
Item Number - 7303 AVG NILOS
Category - NILOS-RING for Single Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 17 mm
Outer Diameter (a) - 41.2 mm
Dimension (C) - 29 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (73 Series Side G) :
Bearing Part Number - 7303
Bearing Type - Single Row Angular Contact Ball Bearing
Inner Diameter (d) - 17 mm
Outer Diameter (D) - 47 mm
Width (B) - 14 mm
♦♦ Images are for representation purposes only
