7234-B-MP FAG

Brand - FAG
Item Number - 7234-B-MP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 170
Outside Diameter (D) mm - 310
Width (B) mm - 52
Basic Dynamic Load Rating, Radial (Cr) N - 270000
Basic Static Load Rating, Radial (C0r) N - 355000
Fatigue Load Limit, Radial (Cur) N - 11900
Limiting Speed (nG) min–1 - 3250
Reference Speed (nϑr) min–1 - 2440
Weight (m) kg - 16.7
Minimum Chamfer Dimension (r min) mm - 4
Minimum Chamfer Dimension (r1 min) mm - 1.5
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 255.8
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 227.4
Distance Between the Apexes of the Pressure Cones (a) mm - 127
Nominal Contact Angle (α)° - 40

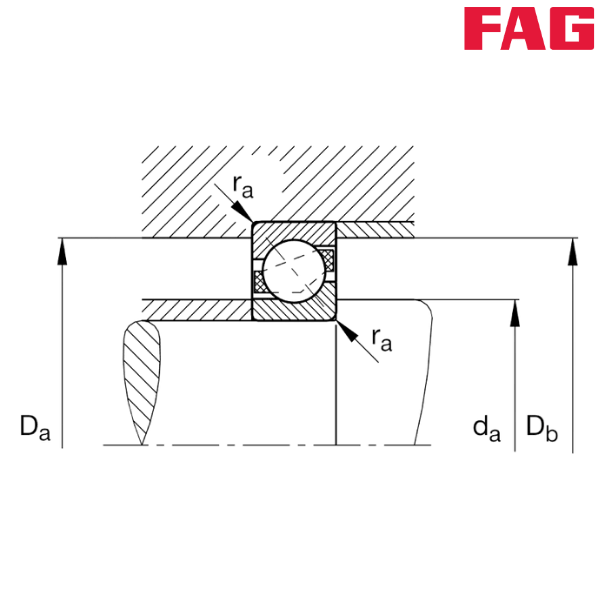

Minimum Diameter of Shaft Shoulder (da) mm - 187
Maximum Diameter of Housing Shoulder (Da) mm - 293
Maximum Diameter of Housing Shoulder (Db) mm - 301
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Housing (ra1) mm - 1.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
MP - Solid Brass Cage
