7232-B-MP FAG

Brand - FAG
Item Number - 7232-B-MP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 160
Outside Diameter (D) mm - 290
Width (B) mm - 48
Basic Dynamic Load Rating, Radial (Cr) N - 241000
Basic Static Load Rating, Radial (C0r) N - 305000
Fatigue Load Limit, Radial (Cur) N - 10700
Limiting Speed (nG) min–1 - 3500
Reference Speed (nϑr) min–1 - 2650
Weight (m) kg - 13.5
Minimum Chamfer Dimension (r min) mm - 3
Minimum Chamfer Dimension (r1 min) mm - 1.1
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 238
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 212
Distance Between the Apexes of the Pressure Cones (a) mm - 118
Nominal Contact Angle (α)° - 40

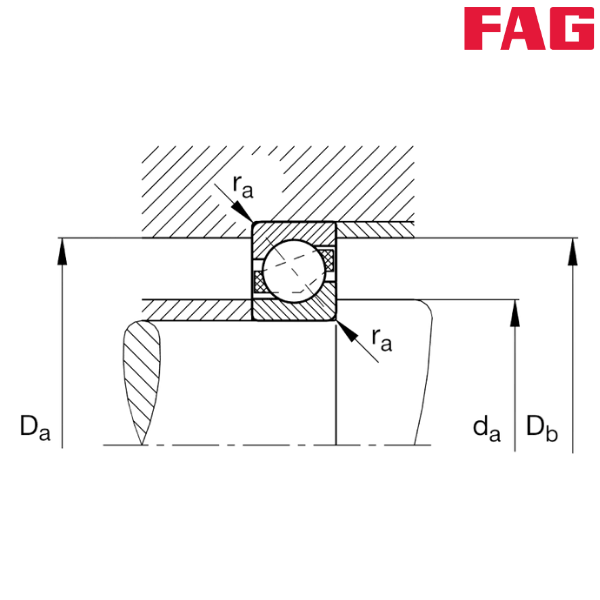

Minimum Diameter of Shaft Shoulder (da) mm - 174
Maximum Diameter of Housing Shoulder (Da) mm - 276
Maximum Diameter of Housing Shoulder (Db) mm - 283
Maximum Fillet Radius of Shaft (ra) mm - 2.5
Maximum Fillet Radius of Housing (ra1) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
MP - Solid Brass Cage

** Images are for representation purposes only
