7230-B-XL-MP FAG

Brand - FAG
Item Number - 7230-B-XL-MP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 150
Outside Diameter (D) mm - 270
Width (B) mm - 45
Basic Dynamic Load Rating, Radial (Cr) N - 245000
Basic Static Load Rating, Radial (C0r) N - 275000
Fatigue Load Limit, Radial (Cur) N - 13200
Limiting Speed (nG) min–1 - 3750
Reference Speed (nϑr) min–1 - 2850
Weight (m) kg - 10.9
Minimum Chamfer Dimension (r min) mm - 3
Minimum Chamfer Dimension (r1 min) mm - 1.1
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 223.5
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 197.5
Distance Between the Apexes of the Pressure Cones (a) mm - 111
Nominal Contact Angle (α)° - 40

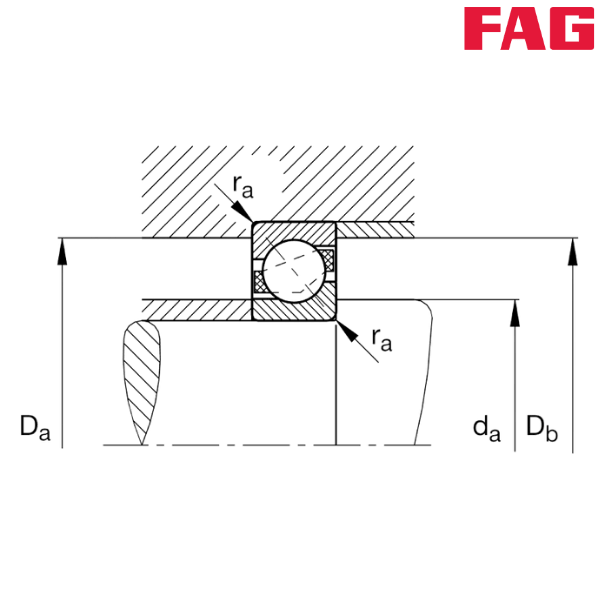

Minimum Diameter of Shaft Shoulder (da) mm - 164
Maximum Diameter of Housing Shoulder (Da) mm - 256
Maximum Diameter of Housing Shoulder (Db) mm - 263
Maximum Fillet Radius of Shaft (ra) mm - 2.5
Maximum Fillet Radius of Housing (ra1) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
MP - Solid Brass Cage
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type

** Images are for representation purposes only
