Description
Brand - STEYR

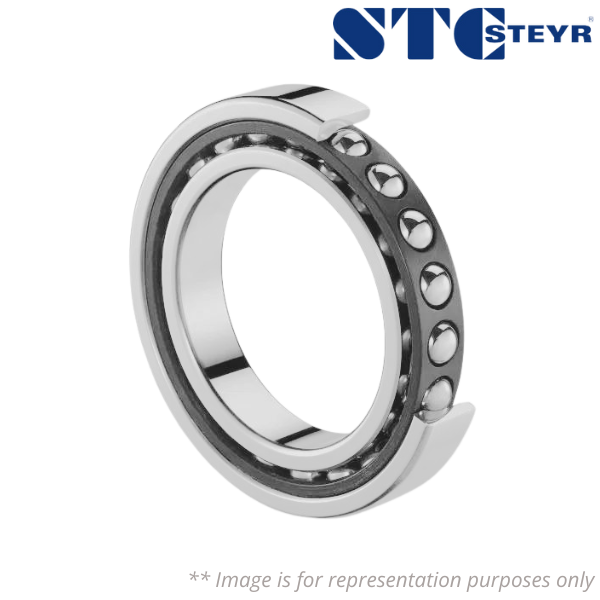

Item Number - 7217BG TGP STEYR
Category - Angular Contact Ball Bearing Single Row
Inner (d) MM - 85
Outer (D) MM - 150
Width (B) MM - 28
Weight (kg) - 1.81
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Precision - Standard Precision
Contact Angle - 40 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - No Preload
Lubrication - Standard Lubrication
