Description
Brand - NILOS
Item Number - 7216 JVG NILOS
Category - NILOS-RING for Single Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 87.2 mm
Dimension (c) - 110 mm
Outer Diamter (D) - 140 mm
Width (h) - 3.5 mm
Material Thickness (s) - 0.5 mm

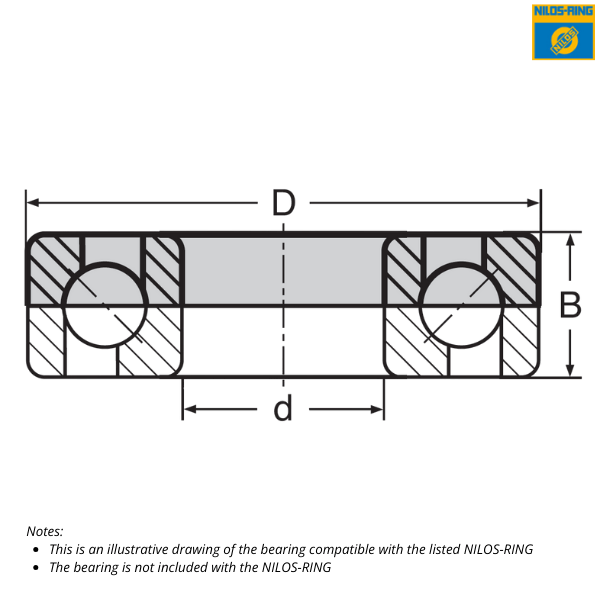

Description of Compatible Bearing (72 Series Side G) :
Bearing Part Number - 7216
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 140 mm
Width (B) - 26 mm
♦ ♦ Images are for representation purposes only
