Description
Brand - SKF

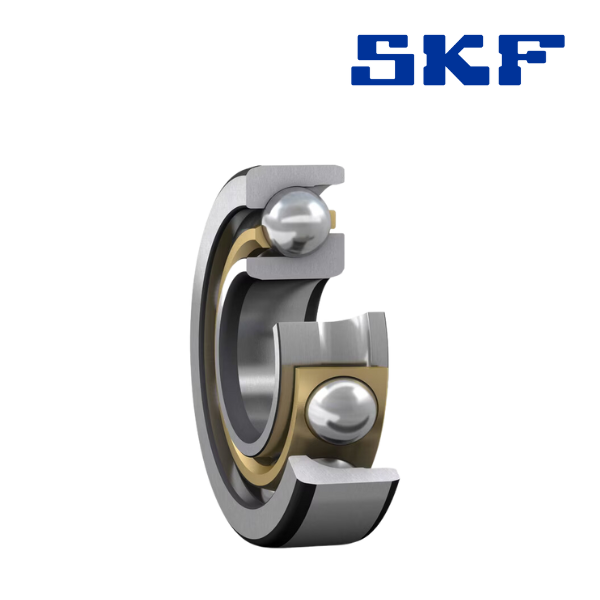

Item Number - 7209ACDGA/P4A SKF
Also known as - 209HEUL 3MM209WI CR SUL 7209 A5 TR SUL P3 7209AD T1 G/GL P42 B7209E.T.P4S.UL E245 7CE3 UL
Inner (d) MM - 45
Outer (D) MM - 85
Width (B) MM - 19
Inner (d) Inch - 1.7717
Outer (D) Inch - 3.3465
Width (B) Inch - 0.748
Weight (kg) - 0.41
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 25 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - GA - Light Preload
Lubrication - Standard Lubrication
