Description
Brand - SKF

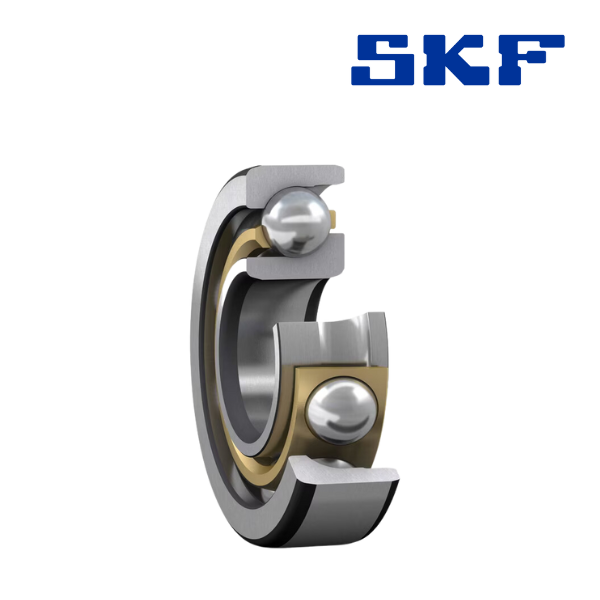

Item Number - 7209ACD/P4ADBA SKF
EAN - 7316570653731
Inner (d) MM - 45
Outer (D) MM - 85
Width (B) MM - 38
Weight (kg) - 0.82
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 25 degrees
Pairing - DB - O-arrangement, 2
Axial Internal Clearance / Preload - GA - Light Preload
Lubrication - Standard Lubrication
