Description
Brand - ZEN
Item Number - 7209-B ZEN

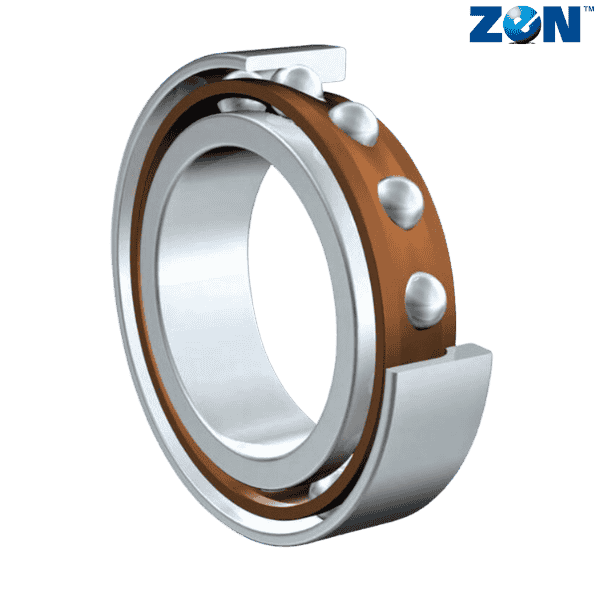

Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 45
Outer Ring Dimension (D) mm - 85
Width (B) mm - 19
Dynamic Load Rating (N) - 37200
Static Load Rating (N) - 25400
Limiting Speed (Grease) - 6.8
Limiting Speed (Oil) - 9.1
Weight (kg) - 0.4
Radial Play - 0.011-0.033
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
