7202-B-XL-JP FAG

Brand - FAG
Item Number - 7202-B-XL-JP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 15
Outside Diameter (D) mm - 35
Width (B) mm - 11
Basic Dynamic Load Rating, Radial (Cr) N - 8400
Basic Static Load Rating, Radial (C0r) N - 4450
Fatigue Load Limit, Radial (Cur) N - 305
Limiting Speed (nG) min–1 - 27000
Reference Speed (nϑr) min–1 - 19100
Weight (m) kg - 0.045
Minimum Chamfer Dimension (r min) mm - 0.6
Minimum Chamfer Dimension (r1 min) mm - 0.3
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 27.6
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 22.8
Distance Between the Apexes of the Pressure Cones (a) mm - 16
Nominal Contact Angle (α)° - 40

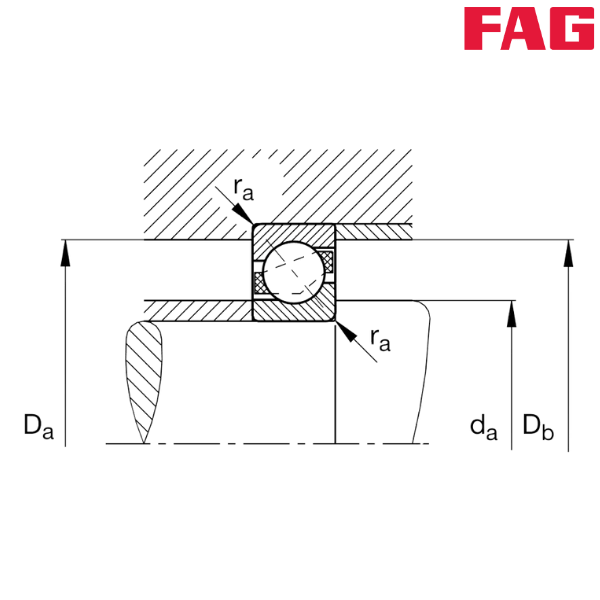

Minimum Diameter of Shaft Shoulder (da) mm - 19.2
Maximum Diameter of Housing Shoulder (Da) mm - 30.8
Maximum Diameter of Housing Shoulder (Db) mm - 32.6
Maximum Fillet Radius of Shaft (ra) mm - 0.6
Maximum Fillet Radius of Housing (ra1) mm - 0.3

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
JP - Sheet Steel Cage
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type

** Images are for representation purposes only
