Description
Brand - NILOS
Item Number - 7202 AVH NILOS
Category - NILOS-RING for Single Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 15 mm
Outer Diameter (a) - 33.8 mm
Dimension (C) - 23 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm

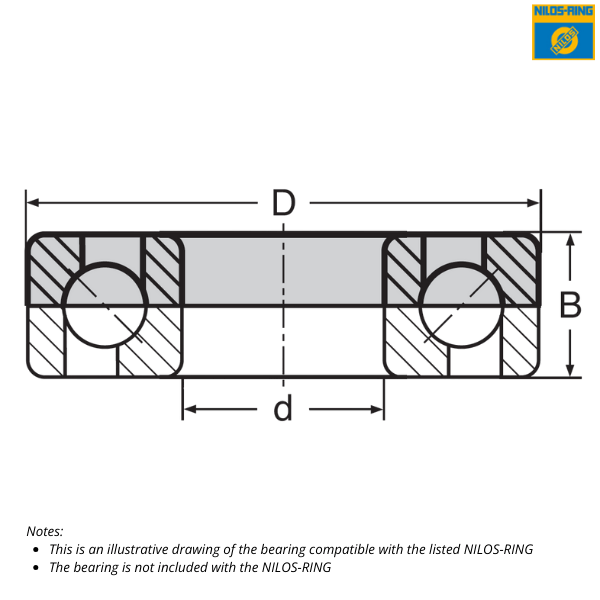

Description of Compatible Bearing (72 Series Side H) :
Bearing Part Number - 7202
Bearing Type - Single Row Angular Contact Ball Bearing
Inner Diameter (d) - 15 mm
Outer Diameter (D) - 35 mm
Width (B) - 11 mm
♦♦ Images are for representation purposes only
Item Number - 7202 AVH NILOS
Category - NILOS-RING for Single Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 15 mm
Outer Diameter (a) - 33.8 mm
Dimension (C) - 23 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (72 Series Side H) :
Bearing Part Number - 7202
Bearing Type - Single Row Angular Contact Ball Bearing
Inner Diameter (d) - 15 mm
Outer Diameter (D) - 35 mm
Width (B) - 11 mm
♦♦ Images are for representation purposes only
