7200-B-XL-TVP FAG

Brand - FAG
Item Number - 7200-B-XL-TVP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 10
Outside Diameter (D) mm - 30
Width (B) mm - 9
Basic Dynamic Load Rating, Radial (Cr) N - 5300
Basic Static Load Rating, Radial (C0r) N - 2600
Fatigue Load Limit, Radial (Cur) N - 179
Limiting Speed (nG) min–1 - 34500
Reference Speed (nϑr) min–1 - 22600
Weight (m) kg - 0.032
Minimum Chamfer Dimension (r min) mm - 0.6
Minimum Chamfer Dimension (r1 min) mm - 0.3
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 22
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 18.3
Distance Between the Apexes of the Pressure Cones (a) mm - 13
Nominal Contact Angle (α)° - 40

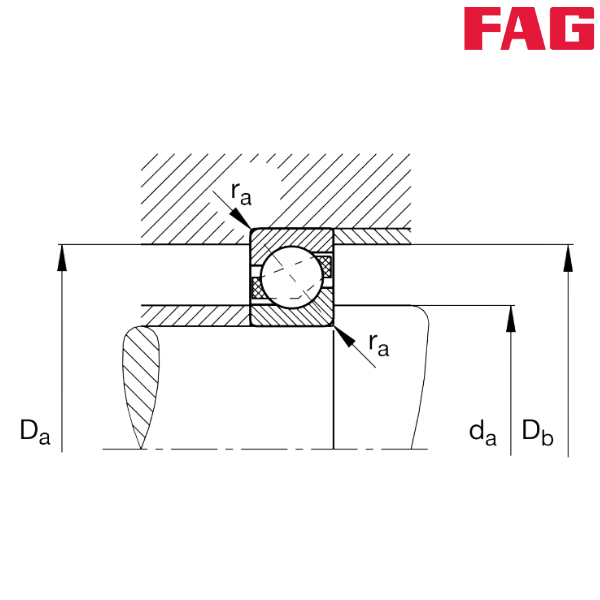

Minimum Diameter of Shaft Shoulder (da) mm - 14.2
Maximum Diameter of Housing Shoulder (Da) mm - 25.8
Maximum Diameter of Housing Shoulder (Db) mm - 27.6
Maximum Fillet Radius of Shaft (ra) mm - 0.6
Maximum Fillet Radius of Housing (ra1) mm - 0.3

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVP - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
