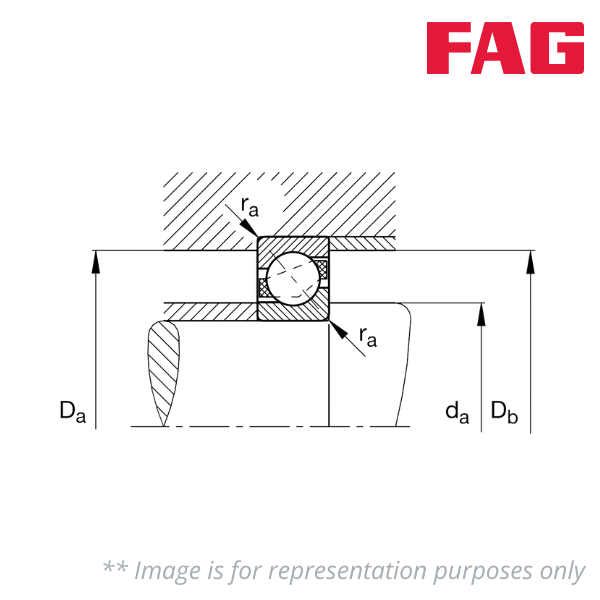

72/600-B-MPB FAG

Brand - FAG
Item Number - 72/600-B-MPB FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 686
Inner Diameter (d) mm - 600
Outer Diameter (D) mm - 1090
Inner Width (B) mm - 155
Minimum Chamfer Dimension (r) mm - 9.5
Minimum Chamfer Dimension (r1) mm - 5
Shoulder Diameter Outer Ring (D1) mm - 886.5
Shoulder Diameter Inner Ring (d1) mm - 803.7
Distance Between The Apexes Of The Pressure Cones (a) mm - 432
Contact Angle (α°) - 40
Minimum Diameter Of Shaft Shoulder (da) mm - 640
Maximum Diameter Of Housing Shoulder (Da) mm - 1050
Maximum Diameter Of Housing Shoulder (Db) mm - 1 070
Maximum Fillet Radius Of Shaft (ra) mm - 8
Maximum Fillet Radius Of Housing (ra1) mm - 4
Basic Dynamic Load Rating (Cr) kN - 1340
Basic Static Load Rating (C0r) kN - 3600
Calculation Factor (e) - 1.14
Calculation Factor (X) - 0.35
Calculation Factor (Y) - 0.57
Calculation Factor (Y0) - 0.26
Fatigue Limit Load Current (Cur) kN - 68
Limiting Speed (nG) rpm - 950
Reference Speed (ng) rpm - 600
