Description
Brand - SNR

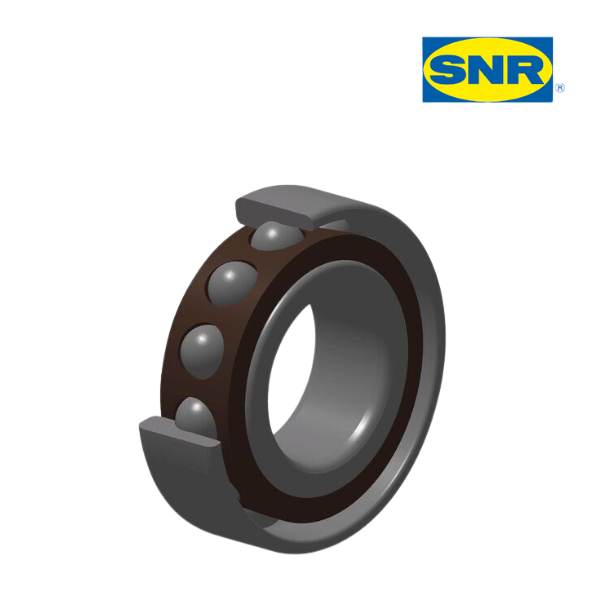

Item Number - 71940CV UA J74 SNR
Category - Angular Contact Ball Bearing Single Row
Inner (d) MM - 200
Outer (D) MM - 280
Width (B) MM - 38
Weight (kg) - 6.1
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 15 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - GA - Light Preload
Lubrication - Standard Lubrication
