71905 CE/HCP4A SKF

Brand - SKF
Item Number - 71905 CE/HCP4A SKF
Category - Angular Contact Ball Bearing Single Row

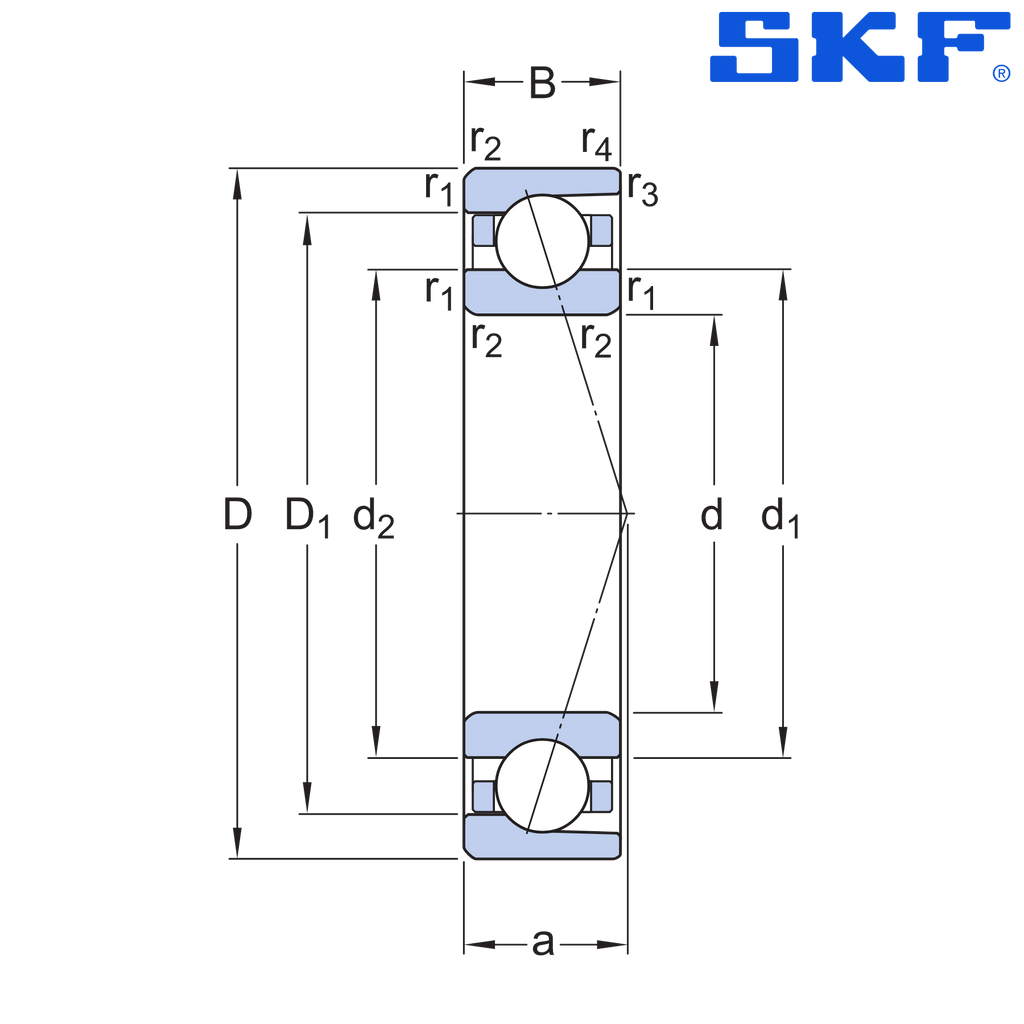

Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 42
Width (B) mm - 9
Basic Dynamic Load Rating (C) kN - 5.27
Basic Static Load Rating (C0) kN - 2.85
Fatigue Load Limit (Pu) kN - 0.12
Attainable Grease Lubrication (r/min) - 58000
Speeds Oil-Air Lubrication (r/min) - 90000
Weight (kg) - 0.036
Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 30.7
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 29.4
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 36.4
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 38.4
Minimum Chamfer Dimension (r1, r2) mm - 0.3
Minimum Chamfer Dimension (r3, r4) mm - 0.15
Minimum Diameter of Shaft Abutment (da) mm - 27
Minimum Diameter of Shaft Abutment (db) mm - 27
Maximum Diameter of Housing Abutment (Da) mm - 40
Maximum Diameter of Housing Abutment (Db) mm - 41.2
Maximum Radius of Fillet (ra) mm - 0.3
Maximum Radius of Fillet (rb) mm - 0.15
Position of Oil Nozzle (dn) mm - 31.8
Reference Grease Quantity (Gref) cm3 - 0.6
Calculation Factor for Equivalent Loads (f0) - 8.1

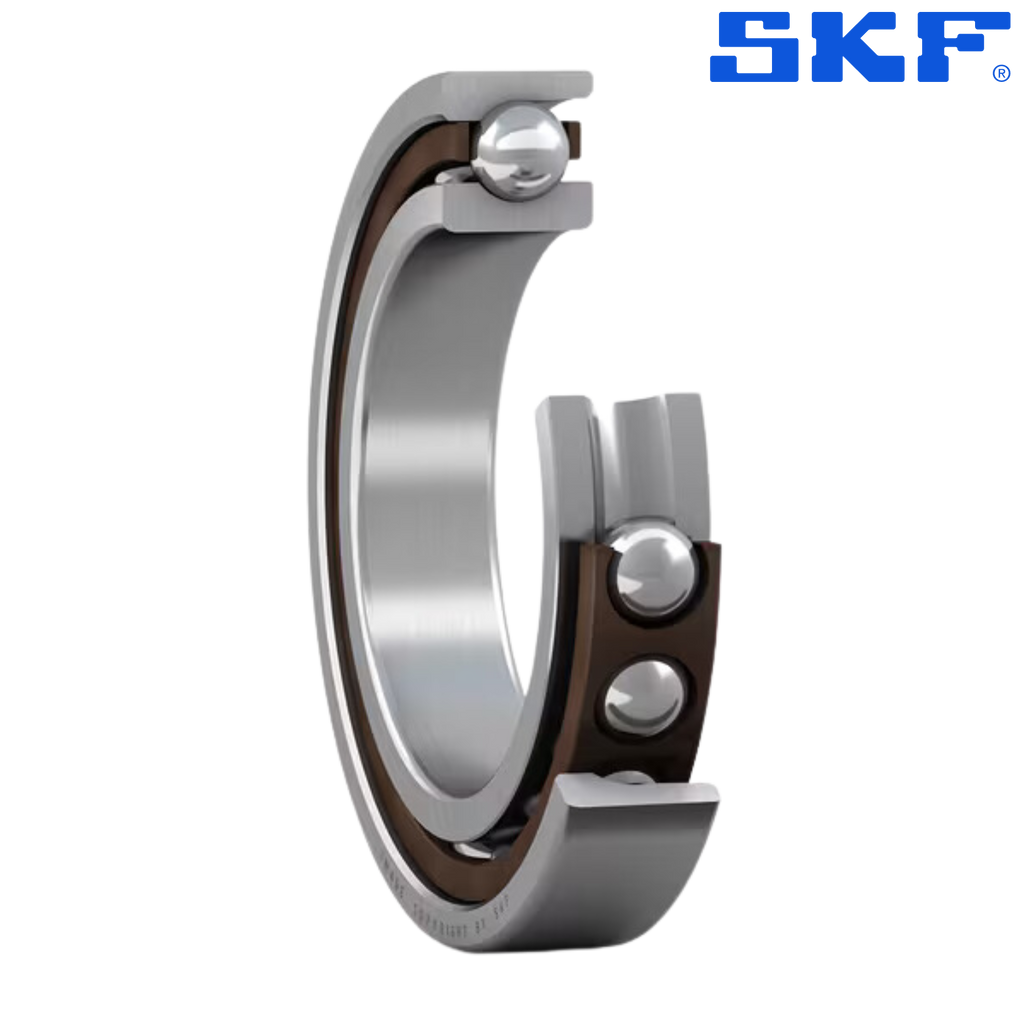

** Image is for representation purposes only
